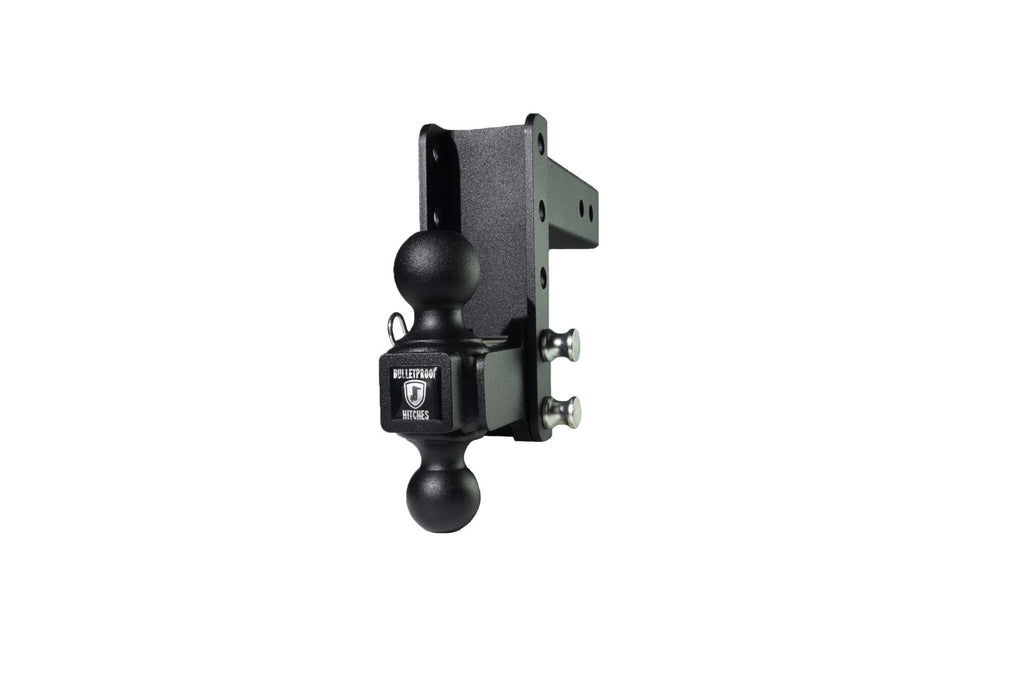

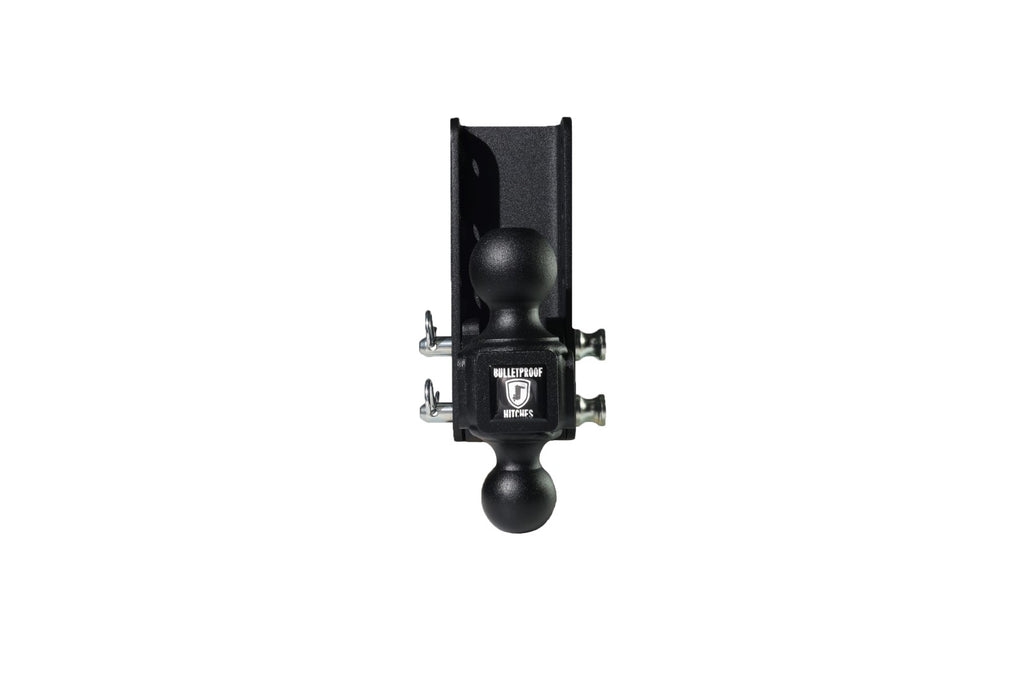

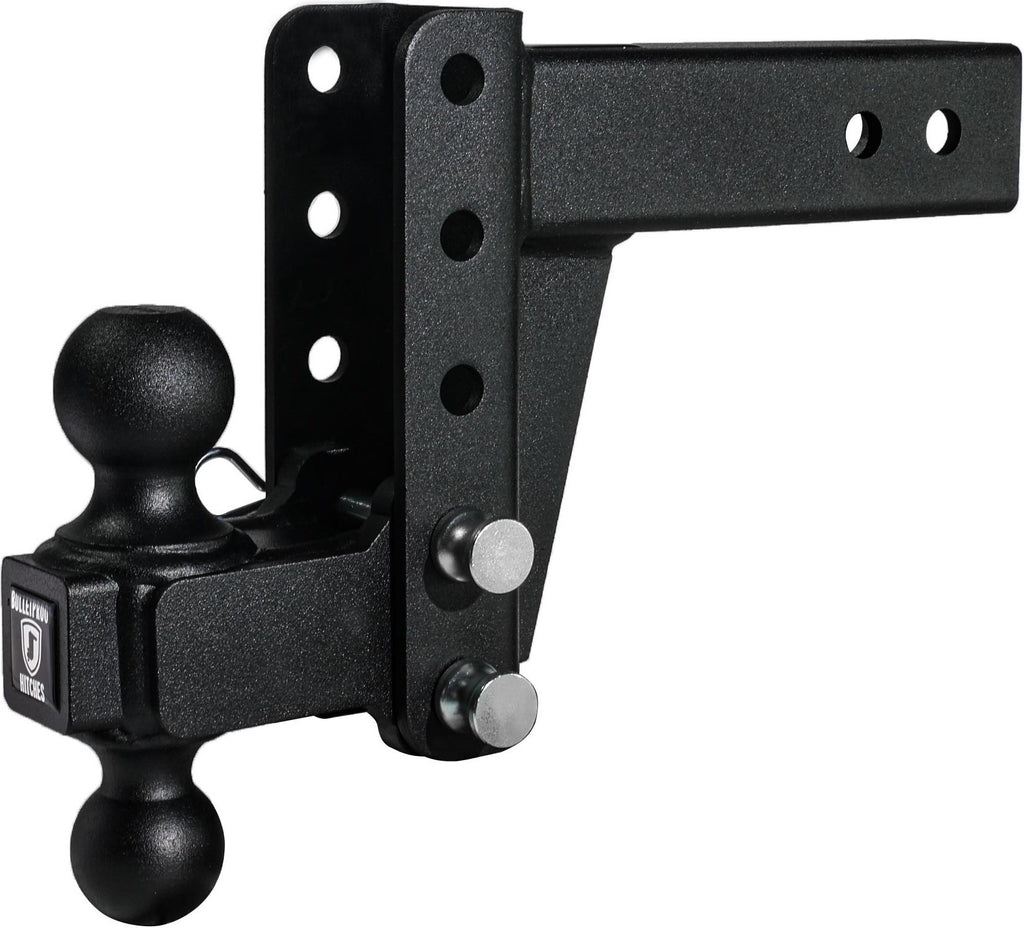

2.5" Medium Duty 4" Drop/Rise Hitch

MD254

5 reviews
  • Sale
  • Regular price $259.00




THE LAST HITCH YOU WILL EVER NEED!


Our 2.5" Medium Duty 4" Drop or Rise Hitch is unlike any of our competitors' products. We worked hard to create 1 amazing Hitch that does the work of 10.

Our hitches are extensively tested and exceed SAE-J684 testing requirements. They are built to such a high standard that we have never had a single failure. You can see why from the features listed below:

Class 5 Hitch with a 14,000 lb Max Towing Capacity & 2,000 lb Tongue Weight Capacity.

4 Ride Heights that are Easily Adjustable.

The 2.5" Medium Duty 4" Drop/Rise Hitch Weighs 29 Pounds.

Medium Duty Hitches Are Not Compatible With Pintle Attachment

*PATENT PENDING

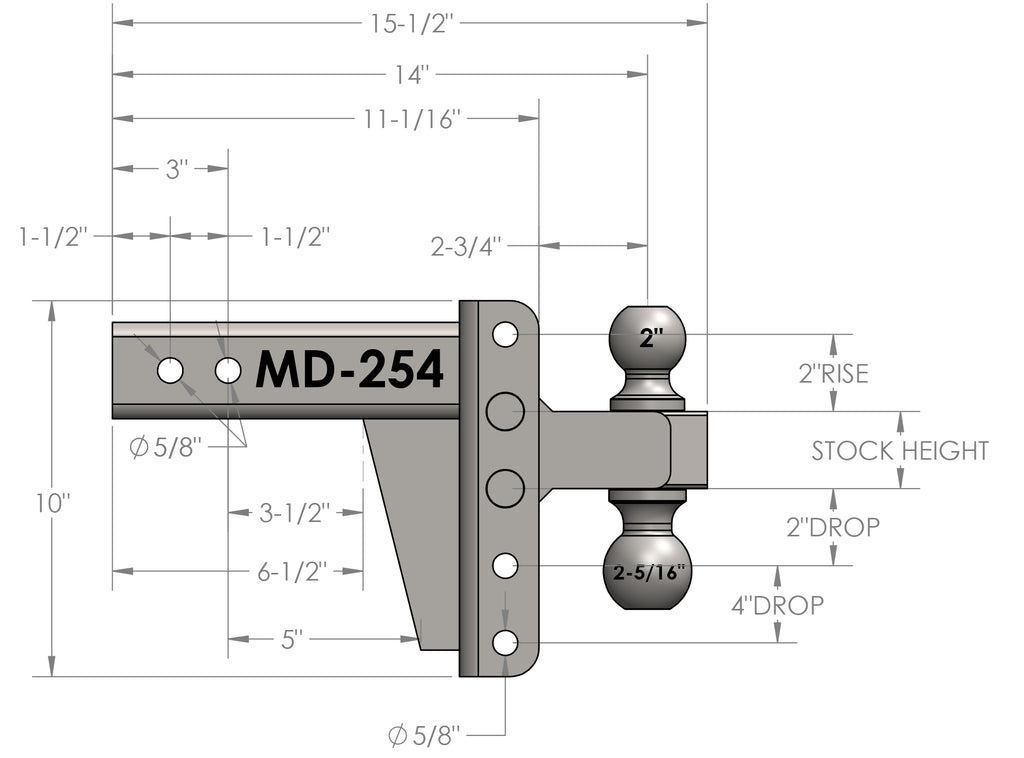

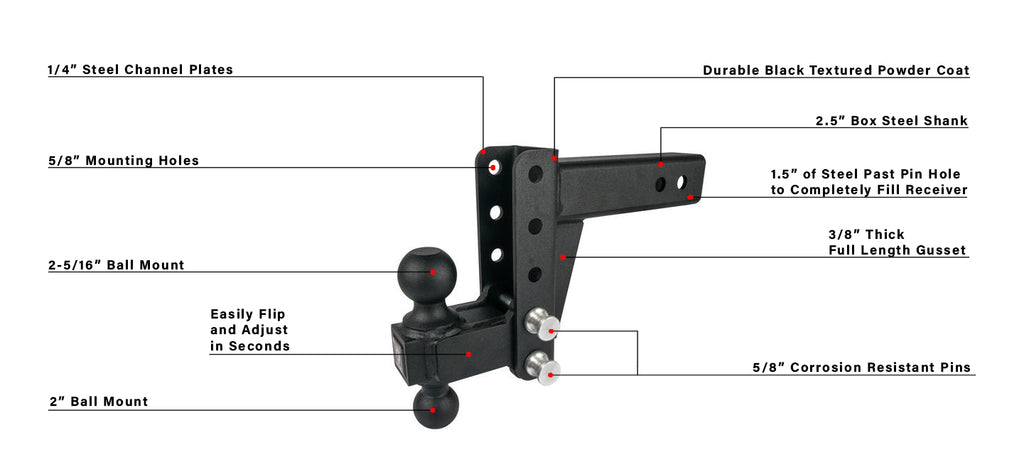

SPECS


BulletProof 2.5

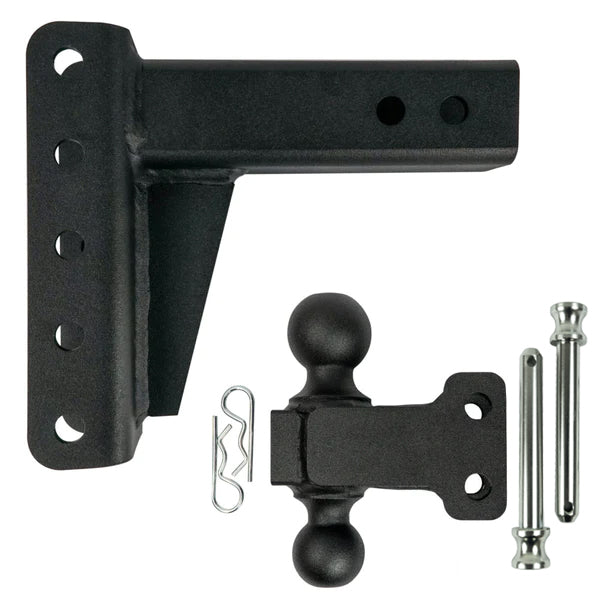

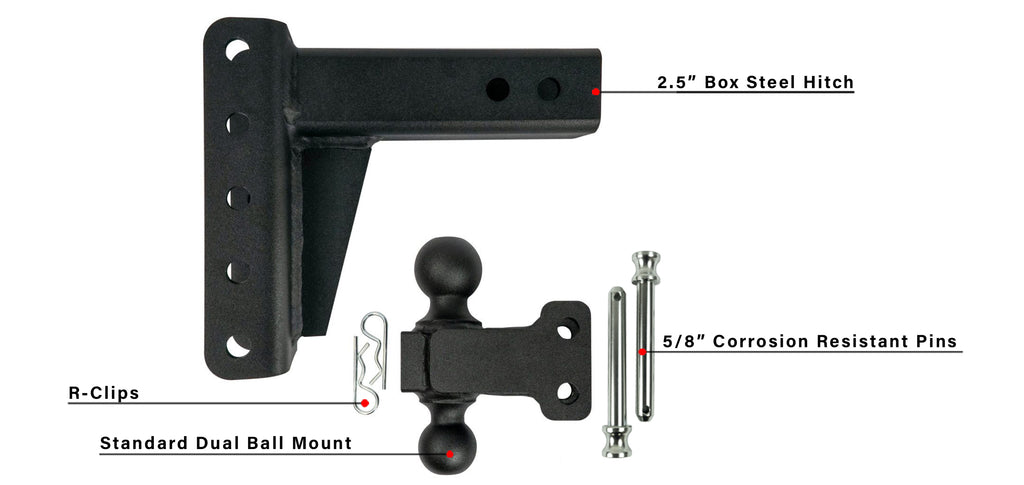

PARTS INCLUDED

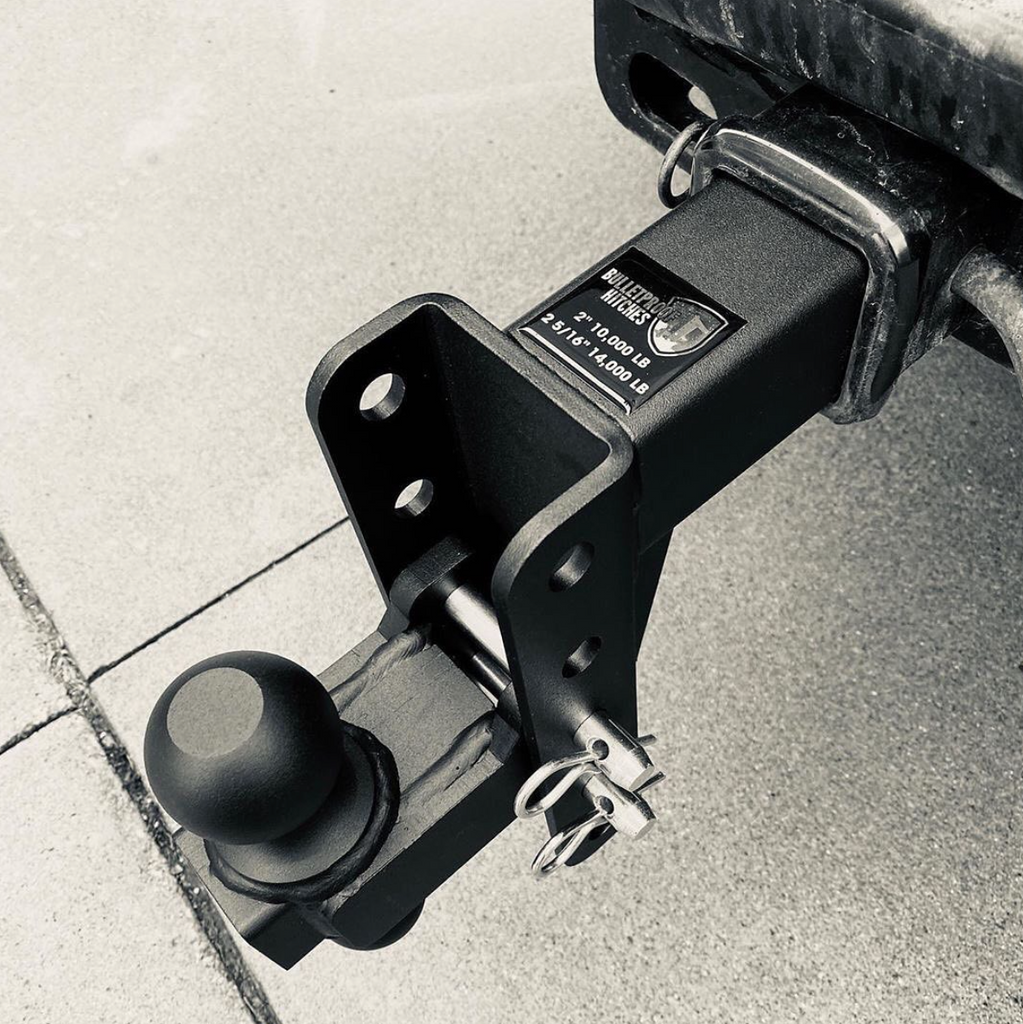

THE MD254 IN USE

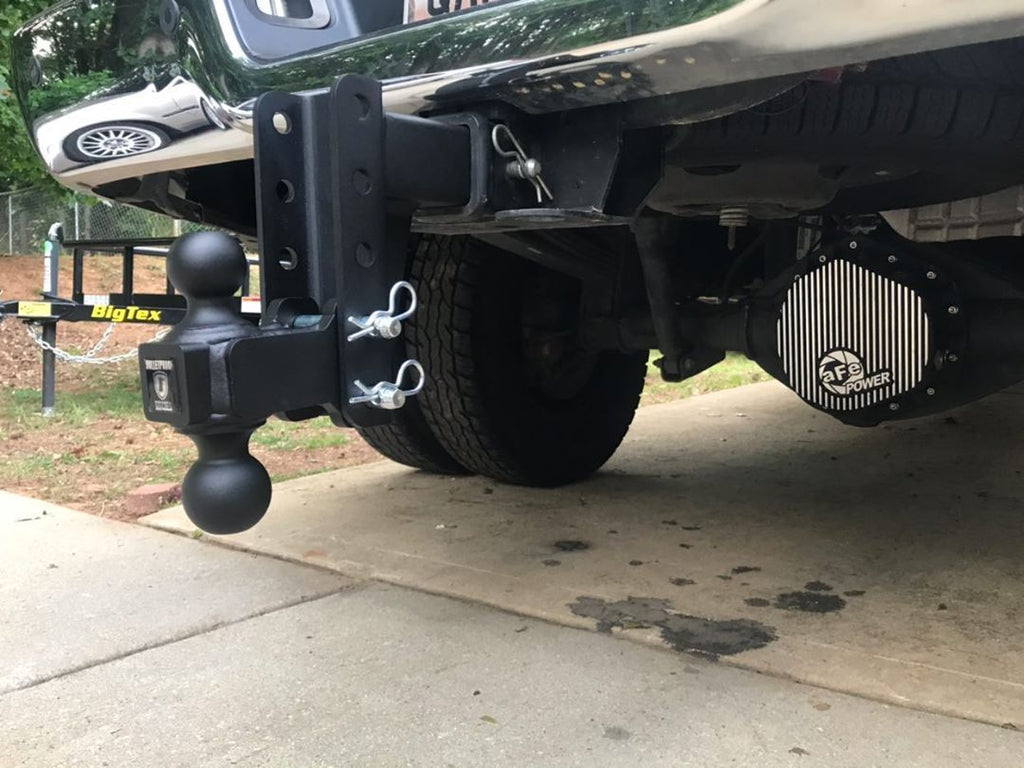

Dually Ram MD254

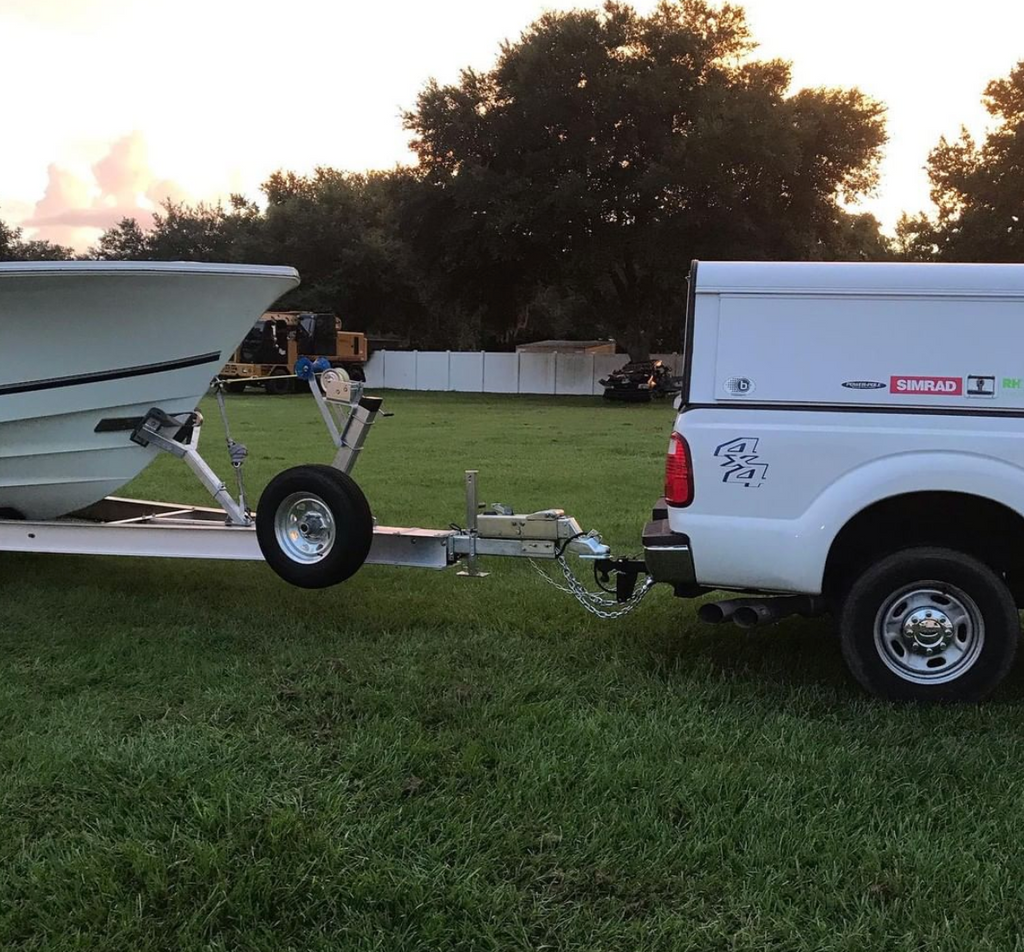

SD and Boat MD254
Dually and MD254
White Gmc MD254

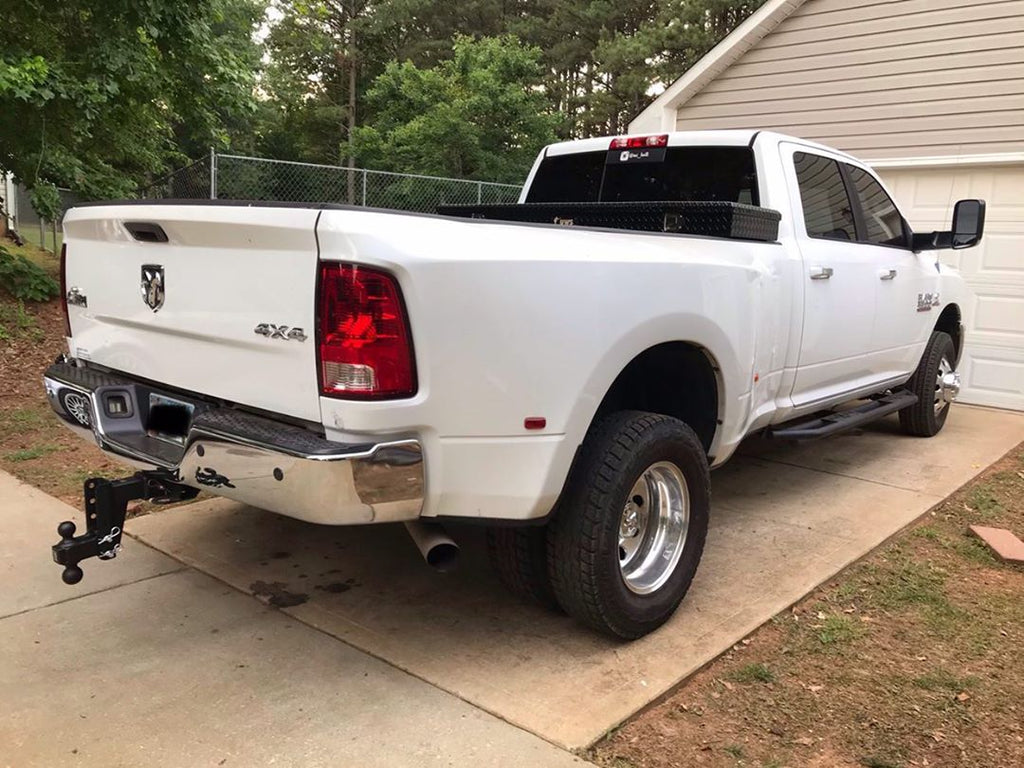

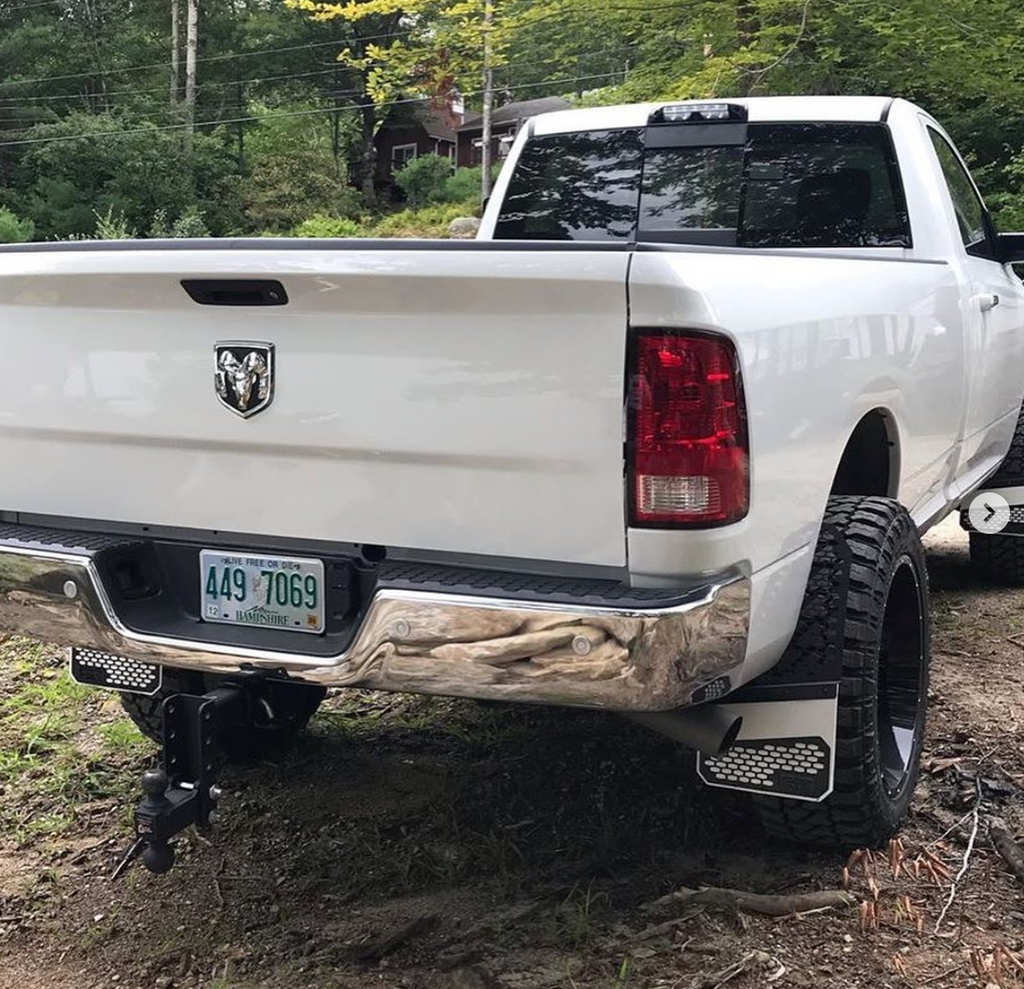

White Ram MD254
MD254

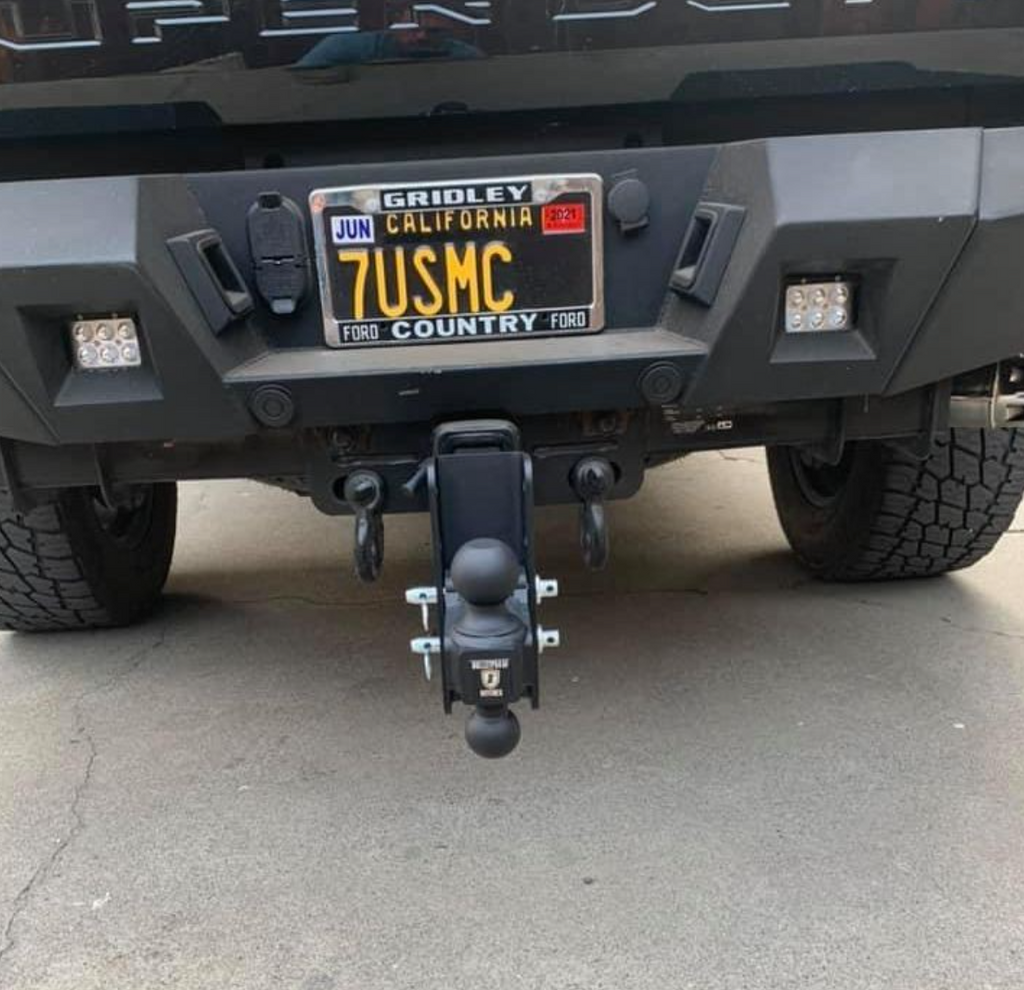

Black Truck MD254

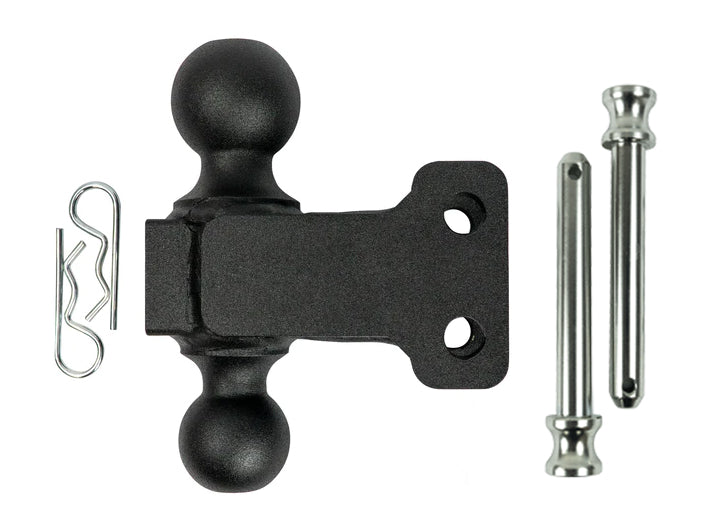

MEDIUM DUTY DUAL BALL MOUNT


Each adjustable mount includes a 2-ball platform, which fits in the adjustable channel of the hitch. The 2 hitch balls are welded together onto the solid steel platform for maximum strength and stability.



Note: We can include any of the dual ball size combinations listed below with your hitch order.

Select the sizes needed for your dual ball from the drop-down menu above.

Available Dual Ball Combinations Include:

  2" & 2-5/16" Dual Ball — No Additional Cost (Most Common Size)

Medium Duty Sway Control Ball Mount $49.95 Upgrade

2" & 2-5/16" Dual Ball AND 1-7/8" Single Ball Mount $119.95 Upgrade



Medium Duty Dual Ball Weight Ratings

1-7/8" Ball: 6,000 lb Rating

2" Ball:  10,000 lb Rating

2-5/16" Ball:  14,000 lb Rating

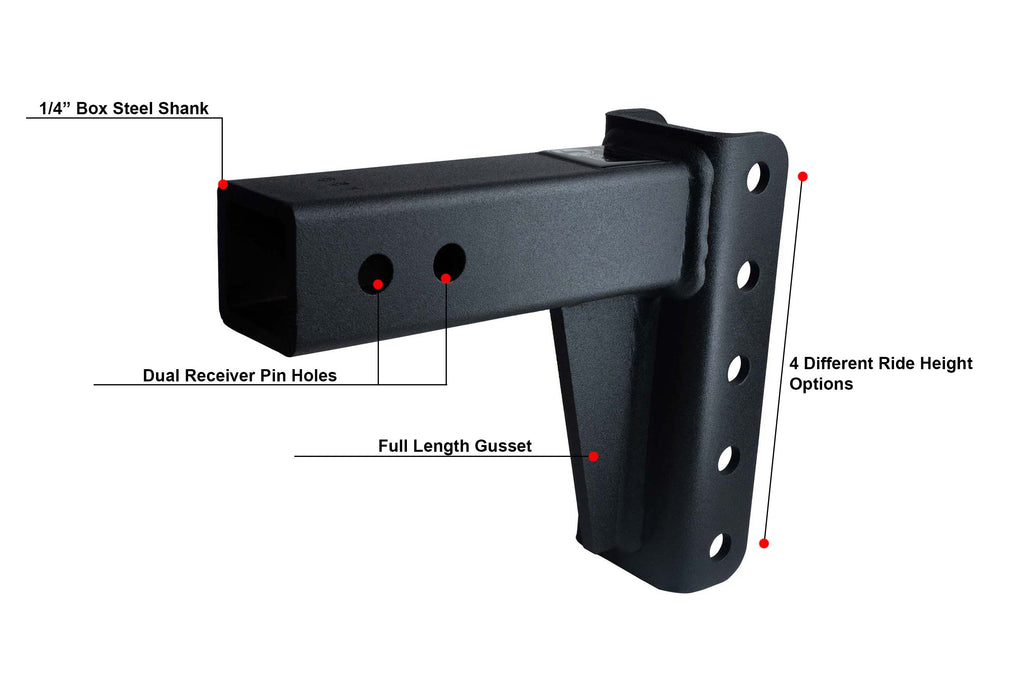

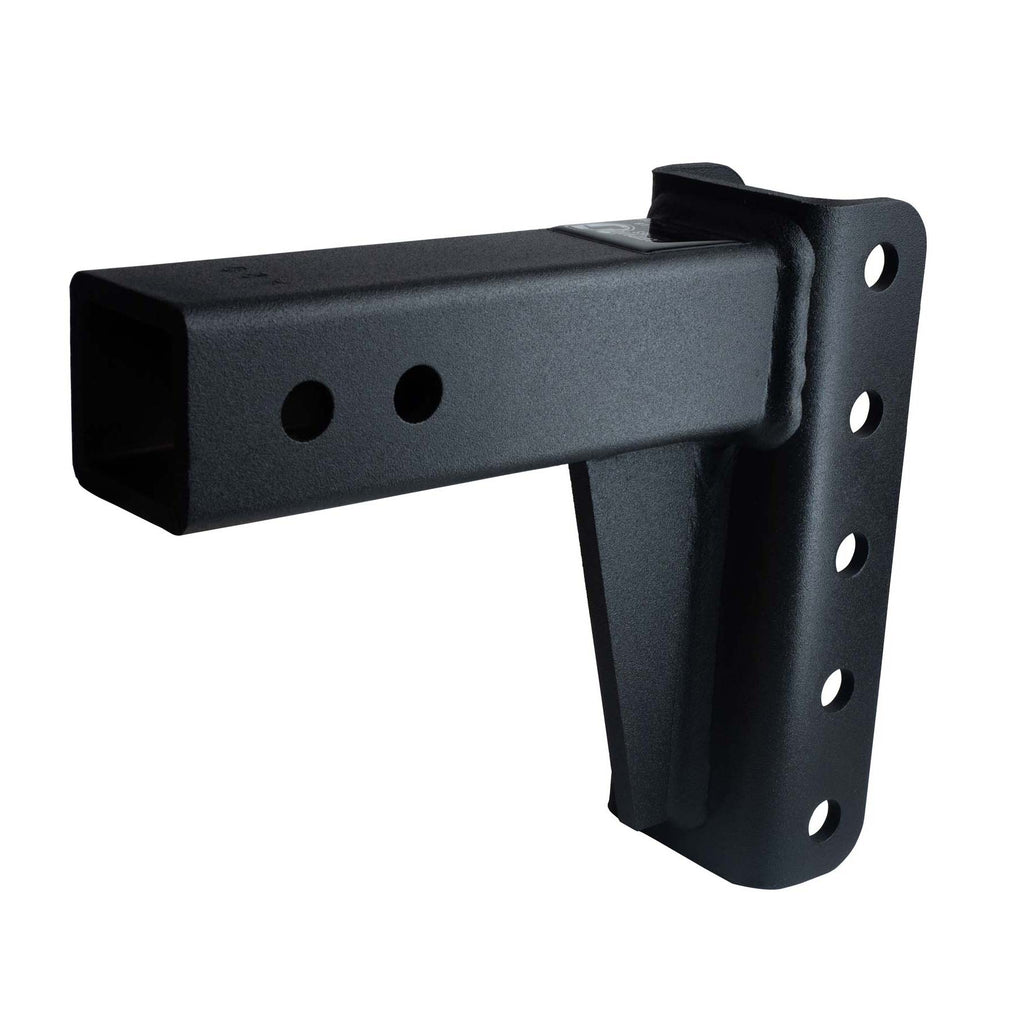

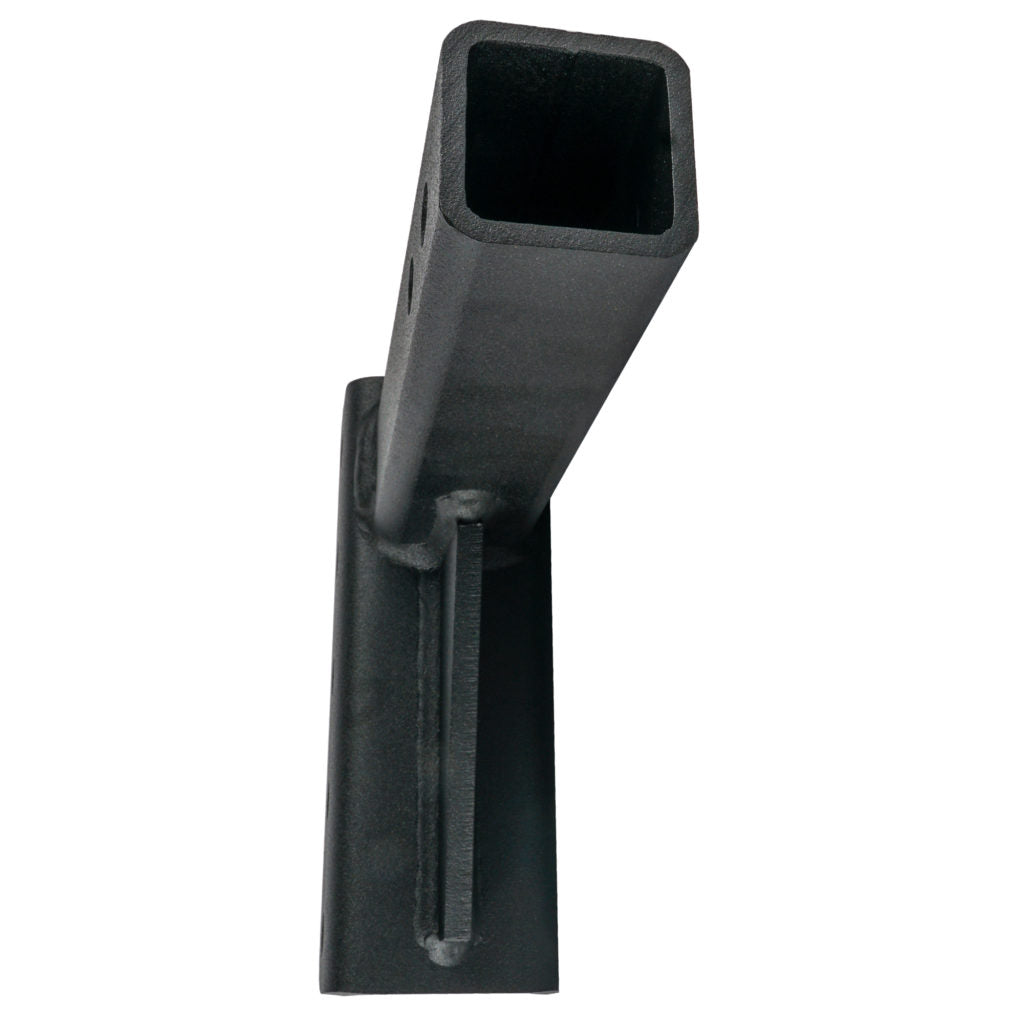

BOX STEEL SHANK


The Medium Duty Hitch Shank is boxed steel and has rounded edges to easily go into & out of your hitch receiver. It also comes with two pin holes on the shank for more adjustment options.

The textured powder-coated finish creates a durable surface to help protect your hitch.



BulletProof 2.5

SIGNATURE BLACK TEXTURED POWDER COAT


All BulletProof Hitches™ feature a durable corrosion-resistant powder coat. This process starts with an aggressive sandblast to remove all impurities and create a clean surface for the powder coat. After the sandblast process, the hitch moves through a 5-stage pretreatment wash to remove any oil or residue. The metal itself is then sealed to eliminate the possibility of corrosion. The final step is an application of our signature black textured powder coat, which is applied by a Fanuc robot to ensure consistent thickness across the hitch.




CNC Machining


The components of the BulletProof Hitch™ are machined in house on our state-of-the-art Haas CNC machines. These CNC machines use Renishaw probes, allowing us to manufacture all of our parts to an extremely tight tolerance. This primarily ensures that each hitch and ball combination fit together without slop or excess movement when attached to your vehicle.



BulletProof Hitches - American Manufacturing

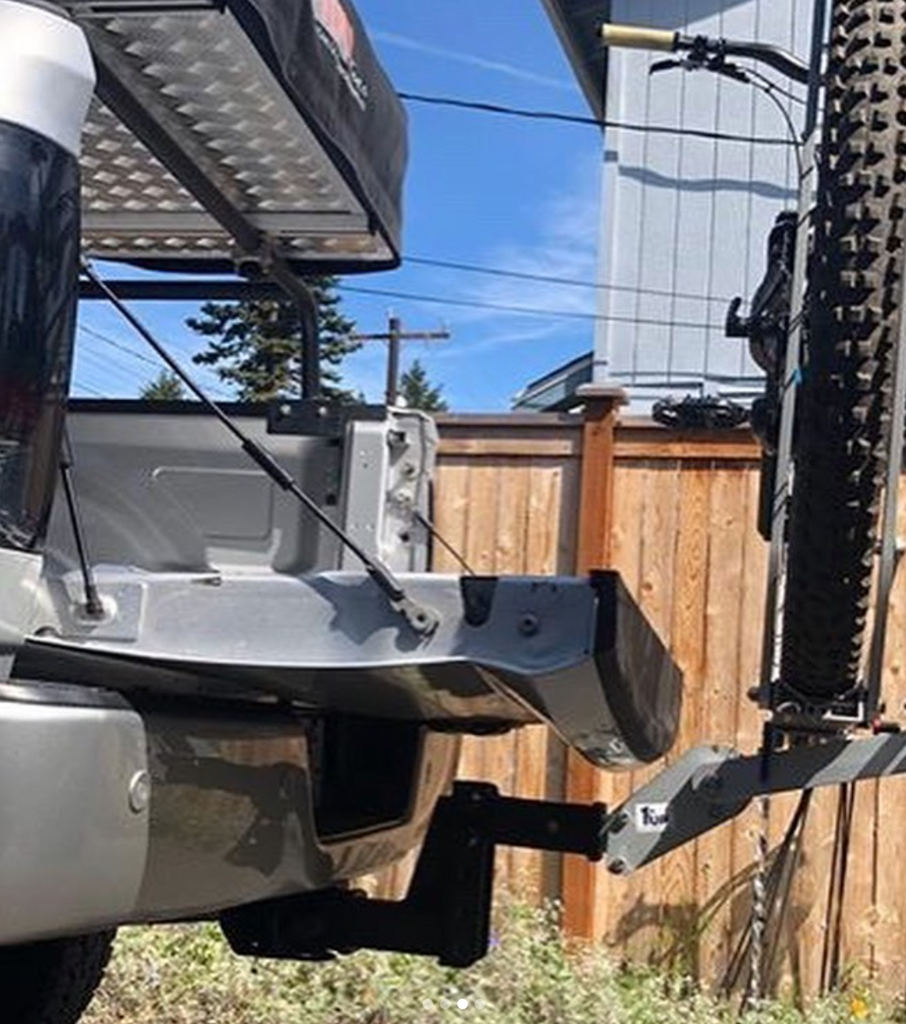

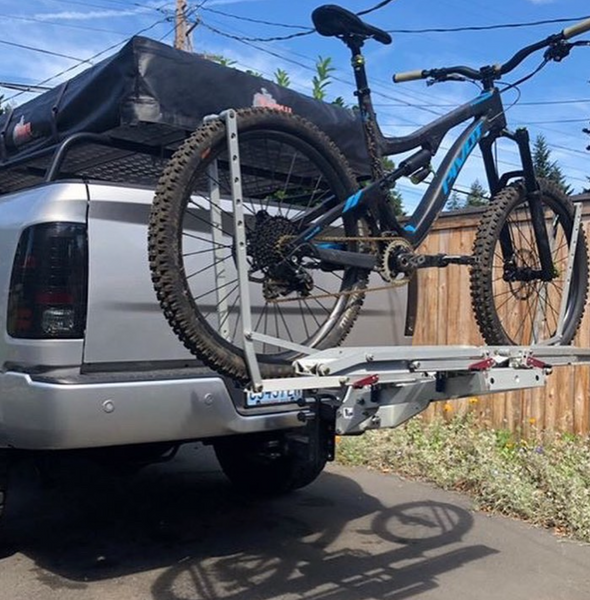

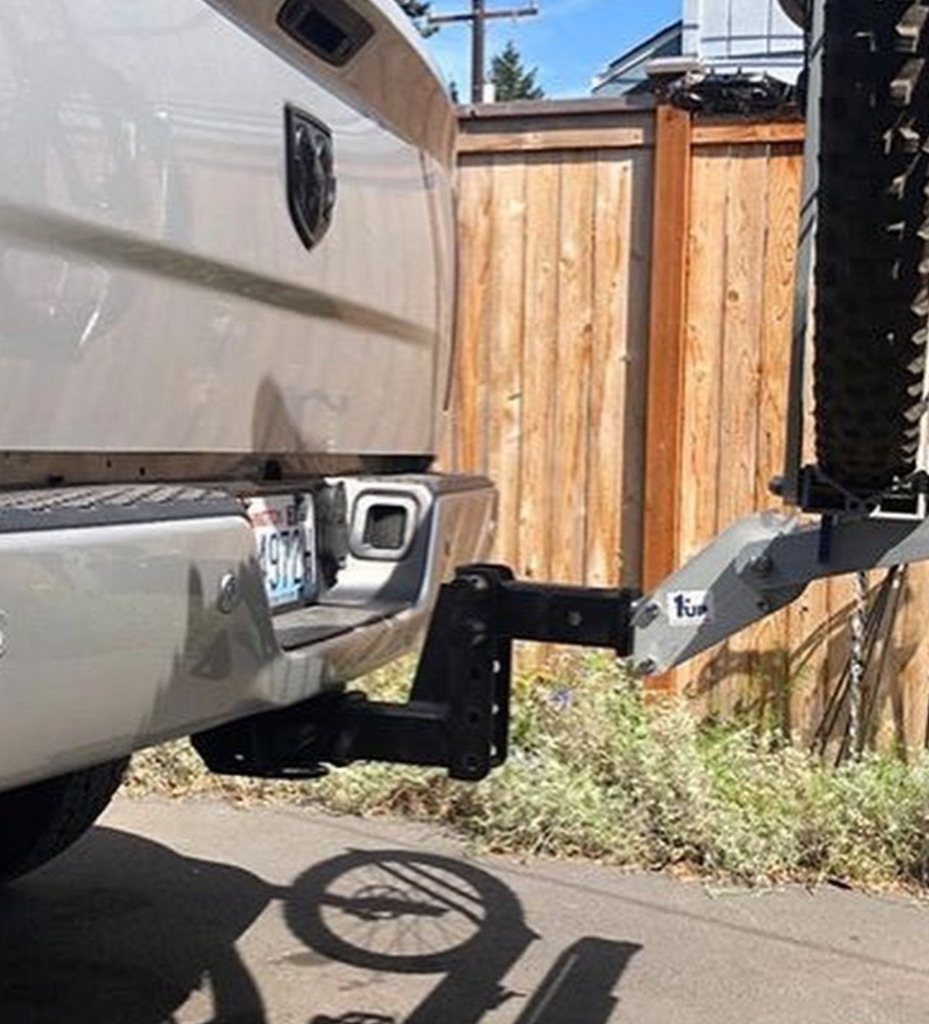

Using Our Hitches in the Rise Position


All of our hitches can be used in the drop or rise position and maintain the same weight capacity in either position.

This 2.5" Medium Duty 4" drop/rise hitch has a max towing capacity of 14,000 lbs and a tongue weight capacity of 2,000 lbs in both the drop & rise positions.




Difference Between Medium, Heavy & Extreme Duty Hitches


2.5" Medium Duty 4" Drop/Rise 2.5" Heavy Duty 4" Drop/Rise 2.5" Extreme Duty 4" Drop/Rise

$259

$379

$429

Max Towing Capacity Rated to 14,000 lbs

Max Towing Capacity Rated to 22,000 lbs

Max Towing Capacity Rated to 30,000 lbs

Tongue Weight Capacity Rated to 2,000 lbs

Tongue Weight Capacity Rated to 3,000 lbs

Tongue Weight Capacity Rated to 6,000 lbs

                      Not Compatible With Pintle Attachment

Compatible With Pintle Attachment (22,000 lb Towing Capacity)

Compatible With Pintle Attachment (30,000 lb Towing Capacity)

Box Steel Shank

Solid Steel Shank

Solid Steel Shank

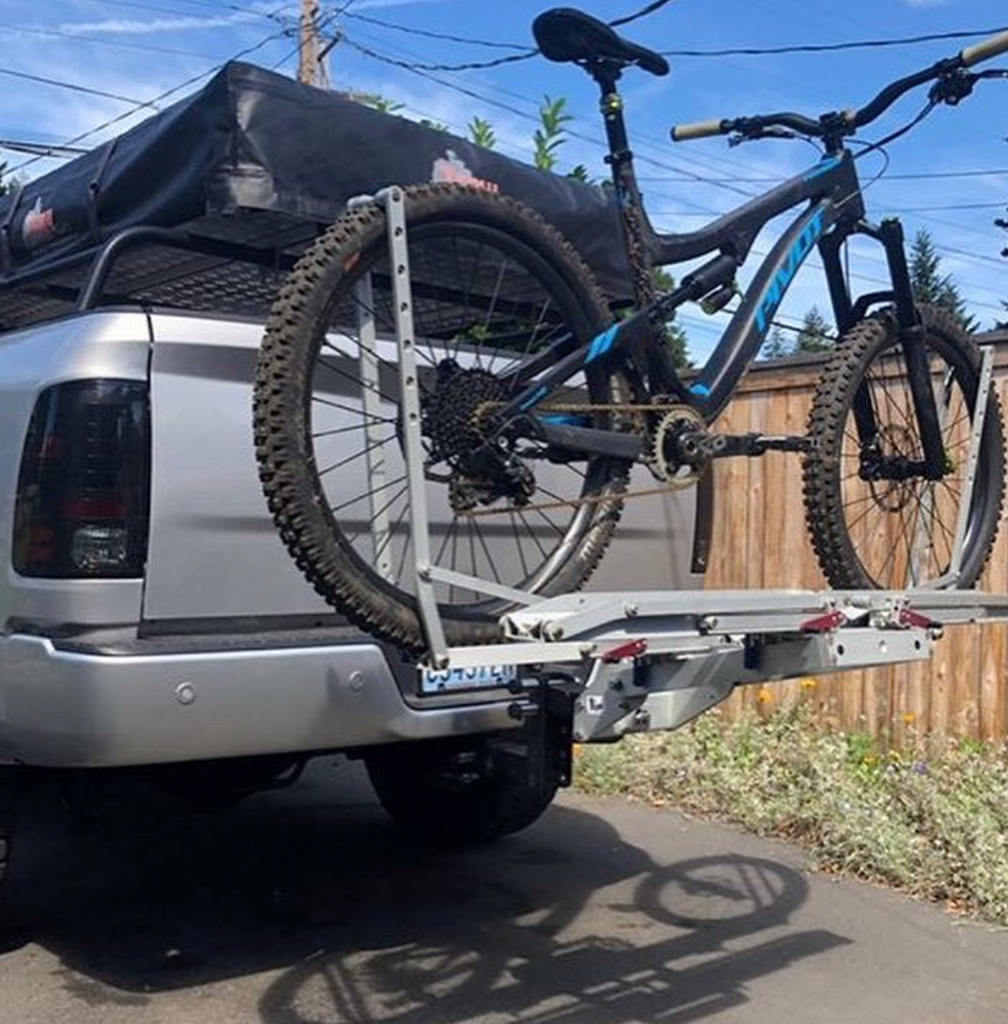

BulletProof Accessories


BulletProof Locking Pin

Step Attachment

Channel Shackles


Heavy Duty 2-Tang Clevis


Check Out Our Full Line of BulletProof Accessories

BulletProof Hitches - Features

The BulletProof 2.5" Heavy Duty 4" Drop/Rise Hitch In Use
