2.5" Medium Duty 6" Drop/Rise Hitch


8 reviews
  • Sale
  • Regular price $229.00


Our 2.5" Medium Duty 6" Drop or Rise Hitch is unlike any of our competitors. We worked hard to create one amazing Hitch that does the work of 10.

Our hitches are extensively tested and exceed SAE-J684 testing requirements. They are built to such a high standard that we have never had a single failure. You can see why from the features listed below:

Class 4 Hitch with a 14,000 lb Max Towing Capacity & 2,000 lb Tongue Weight Capacity.

5 Ride Heights That Are Easily Adjustable.

The 2.5" Medium Duty 6" Hitch Weighs 29 Pounds.

BulletProof 2.5


Parts Included Description


White SD MD256
Black Ram MD256
Black Ram MD256
Black Ram 4x4 MD256
Black GMC MD256
Grey SD MD256
MD256 Locking Pins
Old Vs New MD256
Silver SD MD256
White Chevy MD256


Each adjustable mount includes a 2-ball platform, which fits in the adjustable channel of the hitch. The 2 hitch balls are welded together onto the solid steel platform for maximum strength and stability.


Note: We can include any of the dual ball size combinations listed below with your hitch order.

Select the sizes needed for your dual ball from the drop-down option above.

Available Dual Ball Combinations Include:

  2" & 2-5/16" Dual Ball - No Additional Cost (Most Common Size)

1-7/8" & 2-5/16" Dual Ball - No Additional Cost

Medium Duty Sway Control Ball Mount - $49.95 Upgrade


Medium Duty Dual Ball Weight Ratings

1-7/8" Ball: 6,000 lb. Rating

2" Ball:  10,000 lb. Rating

2-5/16" Ball:  14,000 lb. Rating

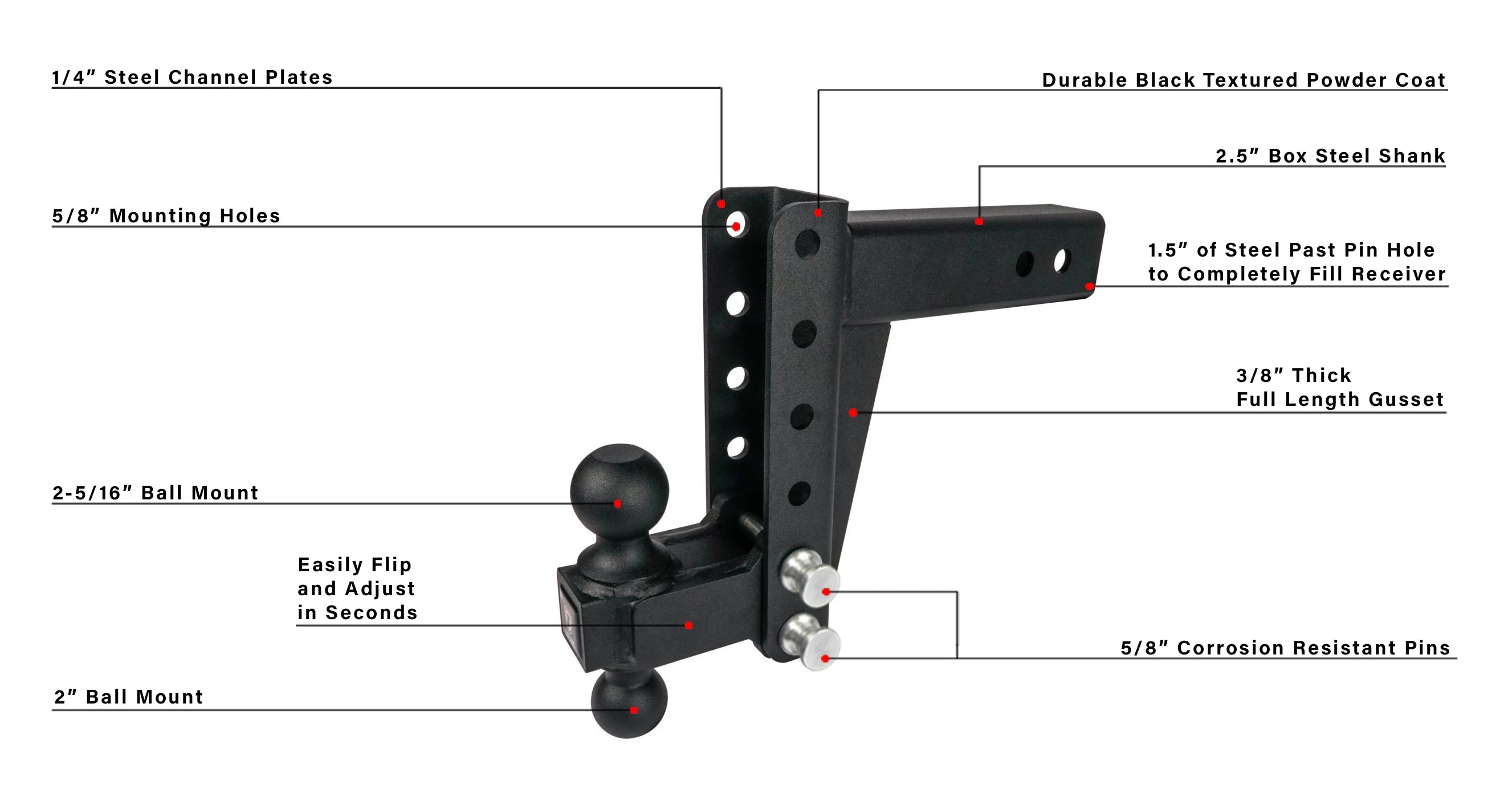

BulletProof Medium Duty Dual Ball with Pins Description

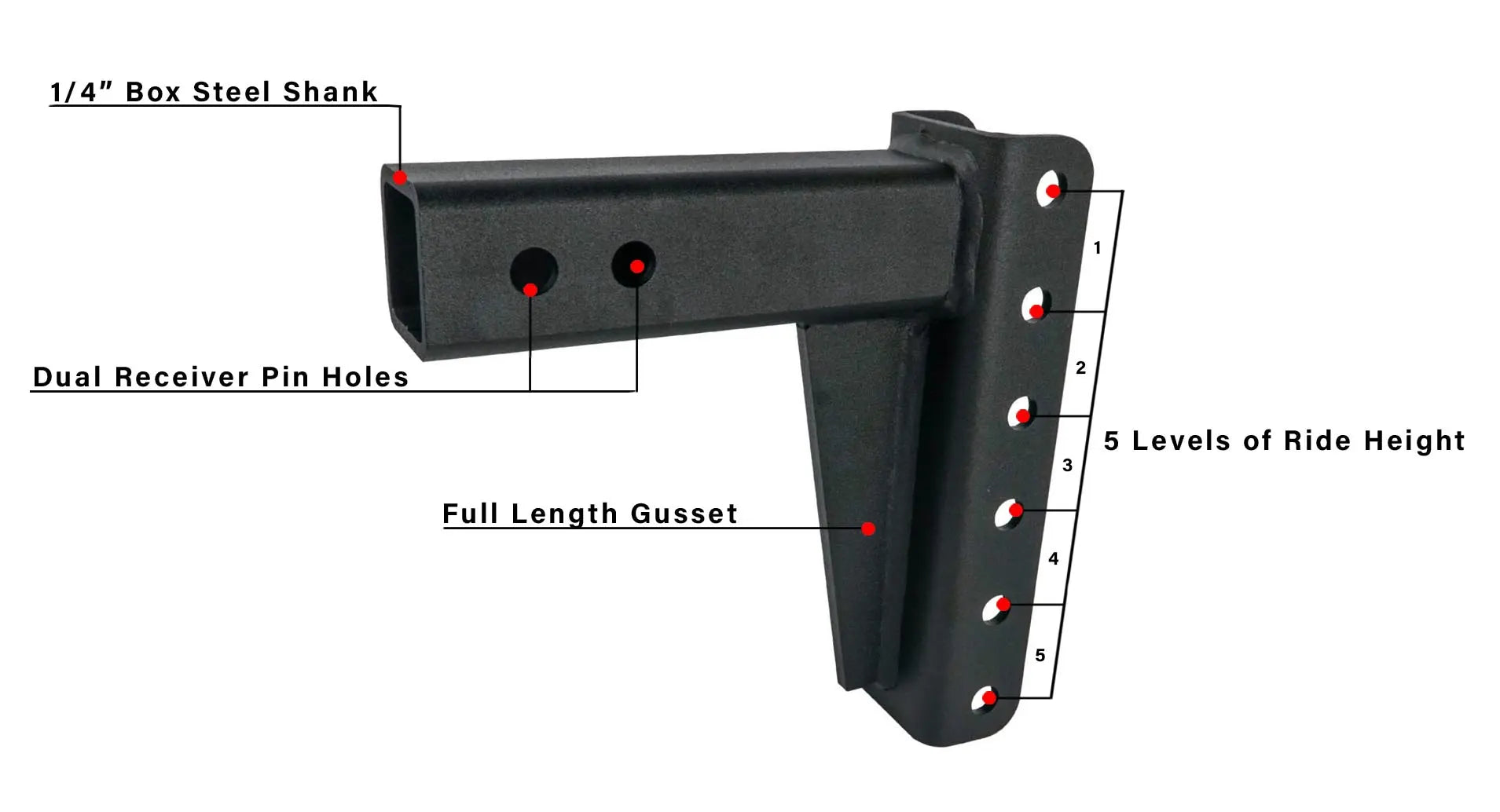

The Medium Duty Hitch Shank is boxed steel and has rounded edges to easily go into & out of your hitch receiver. It also comes with two pin holes on the shank for more adjustment options. The textured powder-coated finish creates a durable surface to help protect your hitch.


Box Steel Shank Description


All BulletProof Hitches™ feature a durable corrosion-resistant powder coat. This process starts with an aggressive sandblast to remove all impurities and create a clean surface for the powder coat. After the sandblast process, the hitch moves through a 5 stage pre-treatment wash to remove any oil or residue. The metal itself is then sealed in to eliminate the possibility of corrosion. The final step is an application of our signature black textured powder coat which is applied by a Fanuc robot to ensure consistent thickness across the hitch.


BulletProof Signature Black Powder Coat

CNC Machining

The components of the BulletProof Hitch™ are machined in house on our state of the art Haas CNC machines. The CNC machines use Renishaw probes, which allows us to manufacture all of our parts to an extremely tight tolerance. This primarily ensures that each hitch and ball combo fit together without slop or excess movement when attached to your vehicle.


BulletProof Hitches - American Manufacturing

Using Our Hitches in the Rise Position

All of our hitches can be used in the drop or rise position and maintain the same weight capacity in either position.

This 2.5" Medium Duty 6" drop/rise hitch has a max towing capacity of 14,000 lbs and a tongue weight capacity of 2,000 lbs in both the drop & rise position.


Difference Between Medium, Heavy, & Extreme Duty

2.5" Medium Duty 6" Drop/Rise Hitch 2.5" Heavy Duty 6" Drop/Rise Hitch 2.5" Extreme Duty 6" Drop/Rise Hitch




Max Towing Capacity Rated to 14,000 lbs

Max Towing Capacity Rated to 22,000 lbs

Max Towing Capacity Rated to 30,000 lbs

Tongue Weight Capacity Rated to 2,000 lbs

Tongue Weight Capacity Rated to 3,000 lbs

Tongue Weight Capacity Rated to 6,000 lbs

                      Not Compatible With Pintle Attachment

Compatible With Pintle Attachment (22,000 lb Towing Capacity)

Compatible With Pintle Attachment (30,000 lb Towing Capacity)

Box Steel Shank

Solid Steel Shank

Solid Steel Shank

BulletProof Accessories

BulletProof Locking Pin

Step Attachment

Pintle Attachment

2-Tang Clevis

Check Out Our Full Line of BulletProof Accessories

BulletProof Hitches - Features

The BulletProof 2.5" Medium Duty 6" Drop/Rise Hitch In-Use

Dodge RAM with BulletProof 2.5
BulletProof 2.5
Ford truck with BulletProof 2.5
Ford Truck with BulletProof 2.5
