Installing the BulletProof Frame-Mounted Hardware Kit

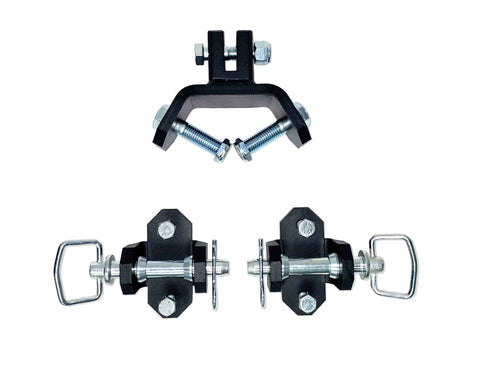

BulletProof Frame-Mounted Hardware Kit


Product Information

Have you purchased a new truck and need to remount your stabilizer bars? Or have you lost a piece of the hardware for your BulletProof Frame-Mounted Hitch Stabilizer Bars? If so, the BulletProof Frame-Mounted Hardware Kit is for you!

BulletProof Frame Mounted Hardware Kit Includes:

1 — Black texture powder coated 1/2" plate hitch bracket
2 — Black texture powder coated 1/2" plate frame brackets
1 — 5/8"x3" bolt & nylon lock nut
2 — 3/4" Heat treated pins with R-clips
2 — 3/4"x3" Bolts & nylon lock jam nuts
4 —1/2"x2" Bolts & nylon lock nuts
4 — 1/2" SAE washers
4 — 3/4"x3/8" Spacers


In some cases fabrication is required to mount the frame brackets to the hitch receiver or the frame.
This depends on the design of your factory hitch receiver and the location of the spare wheel.

Some drilling is required! One 5/8" hole in the hitch gusset and four 1/2" holes in the frame are required!

*This kit does not include any drill bits.*

*Stabilizer Bars are NOT included with this kit*

The Frame Mounted Hitch Stabilizer Bars will fit all existing BulletProof Hitches with 8" of drop or more.

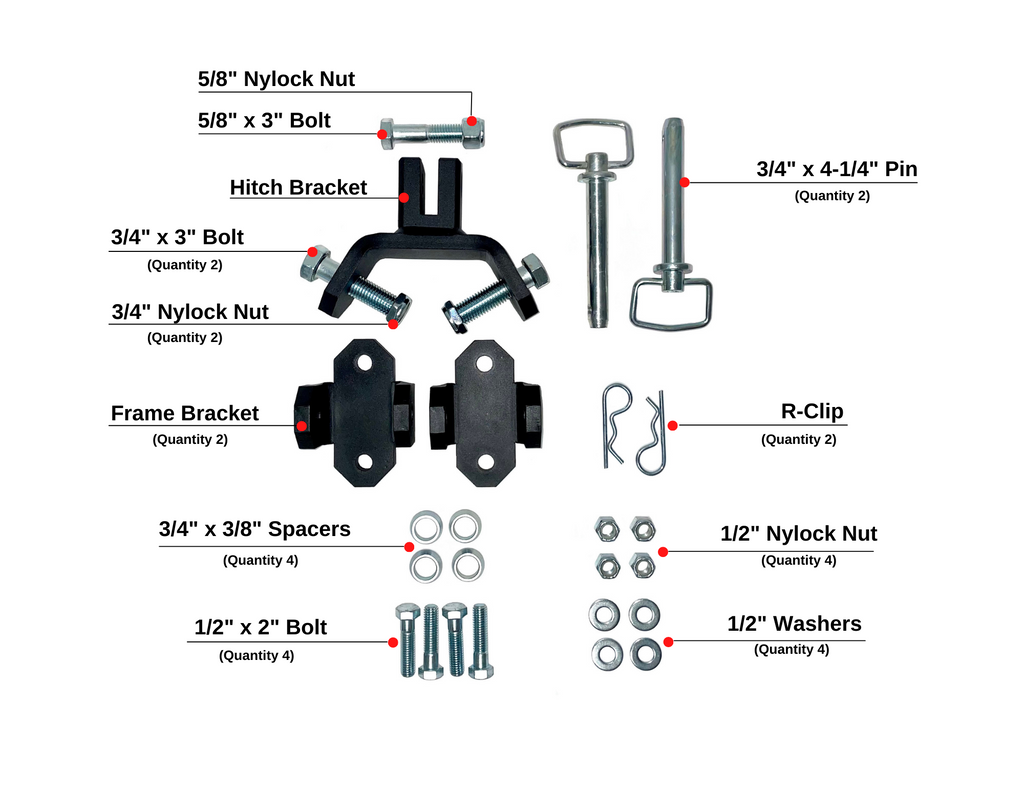

Parts Included

BulletProof Frame-Mounted Hardware Kit Included Parts
