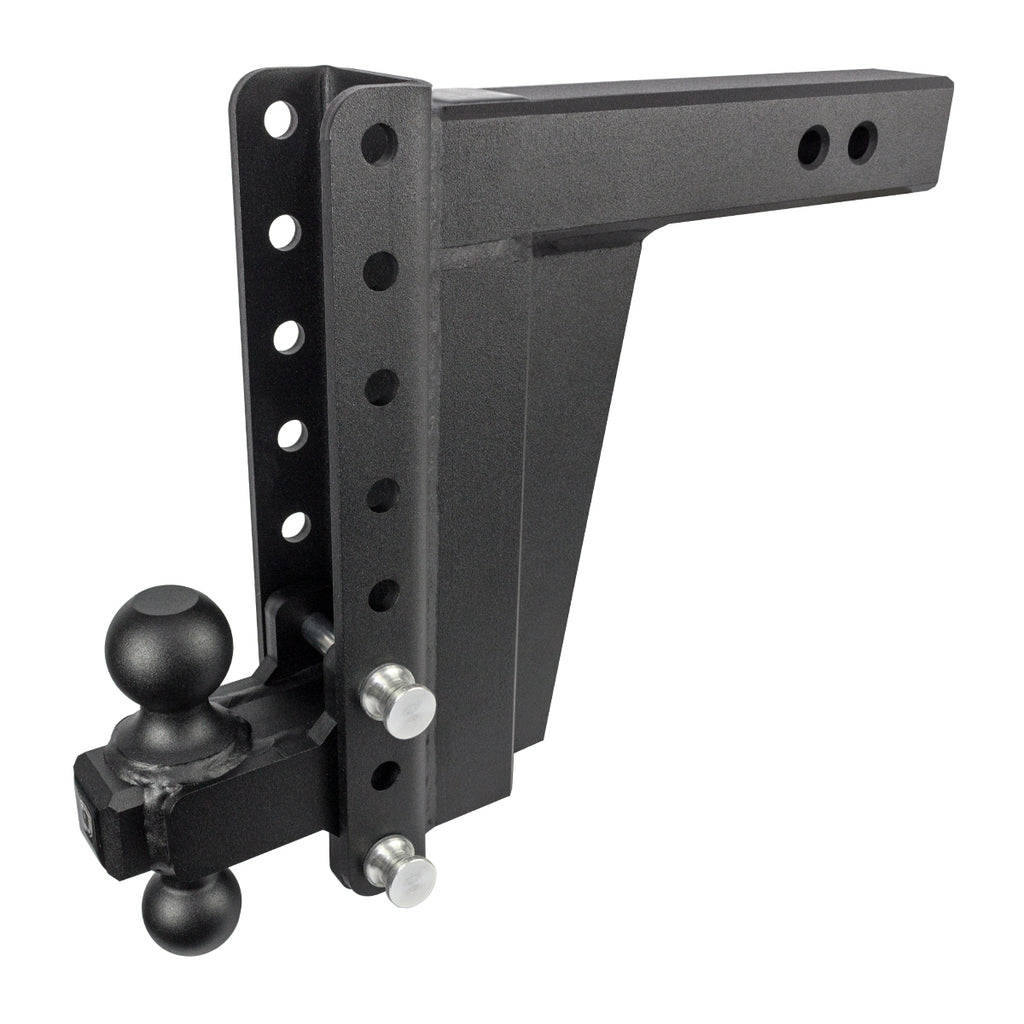

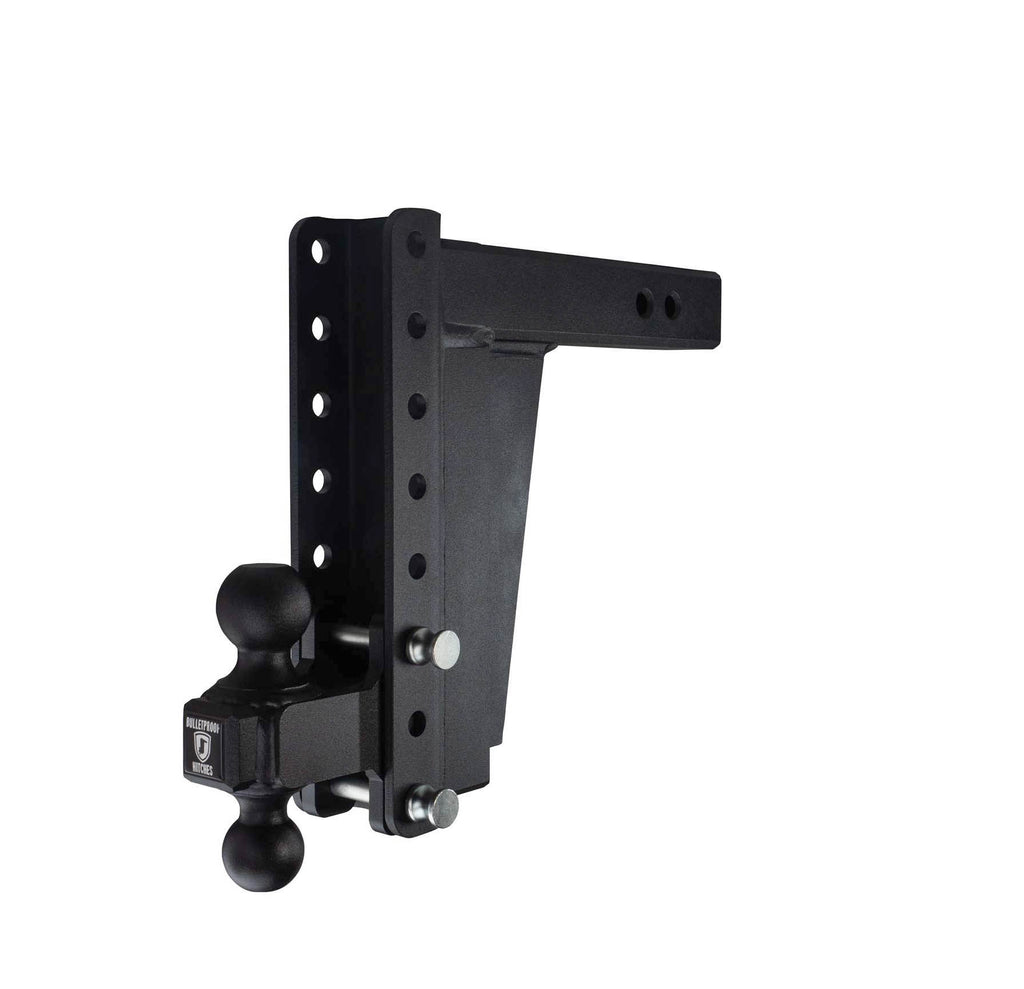

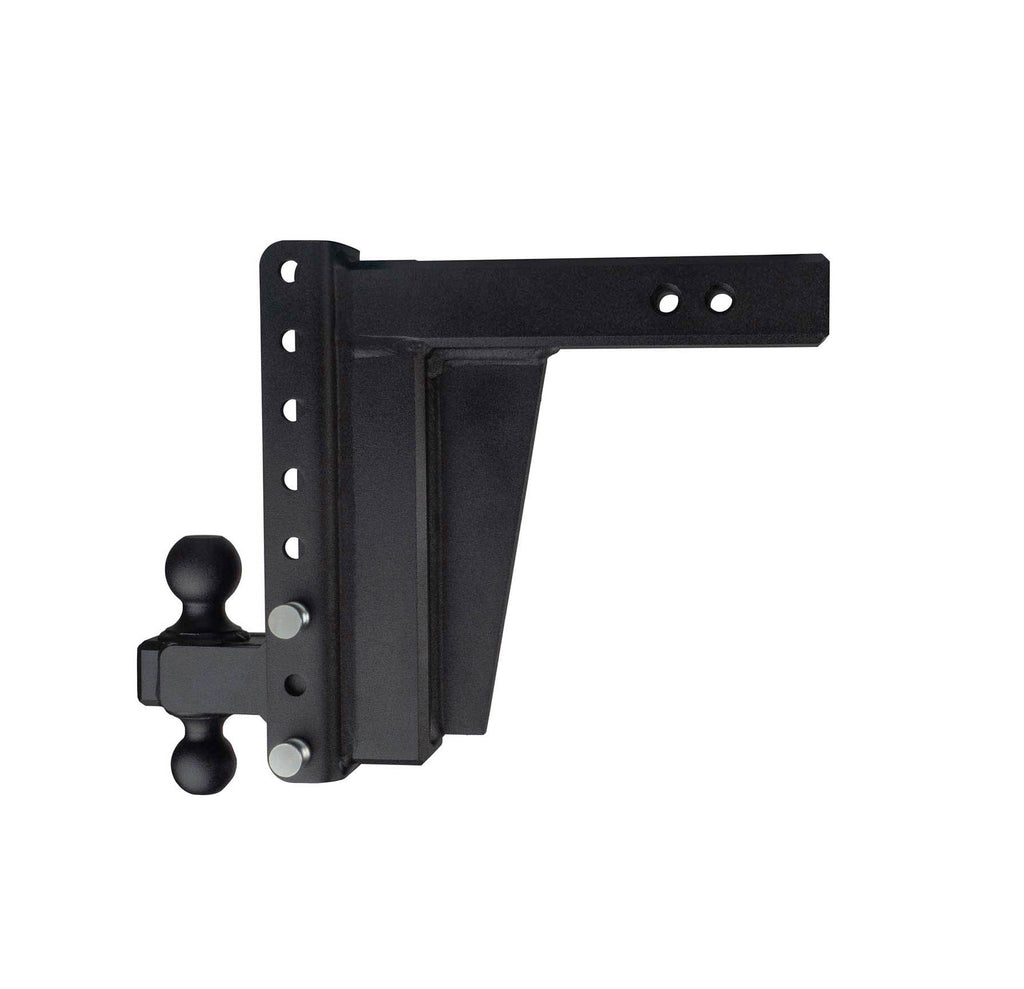

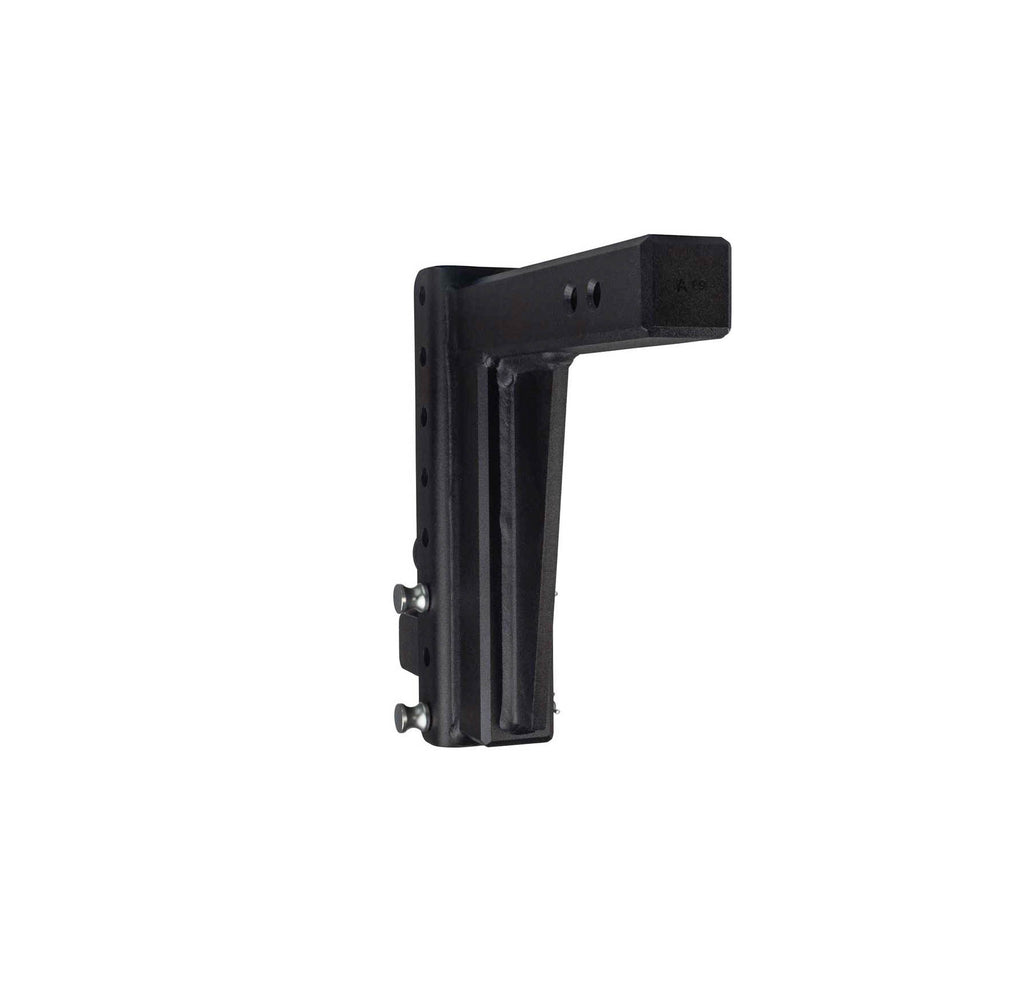

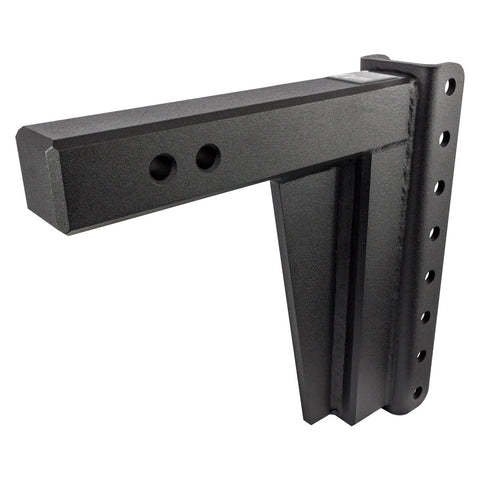

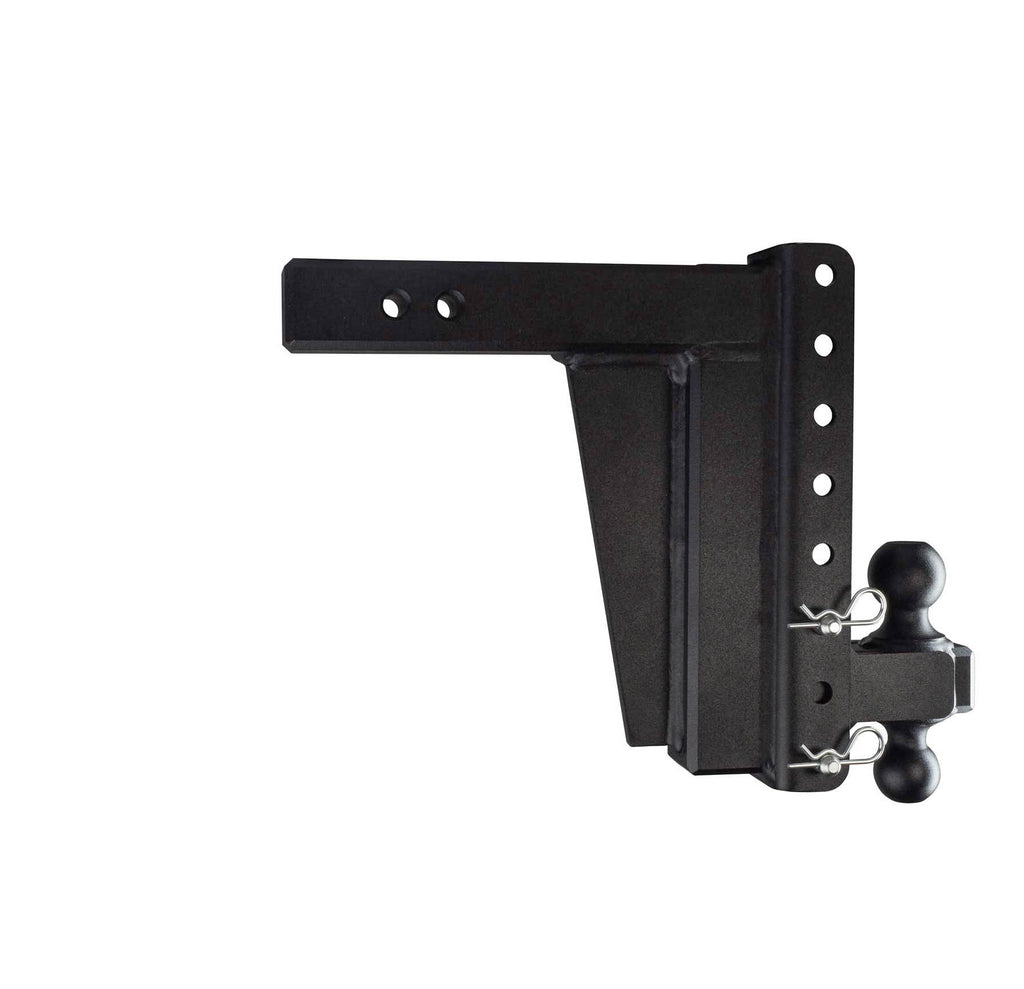

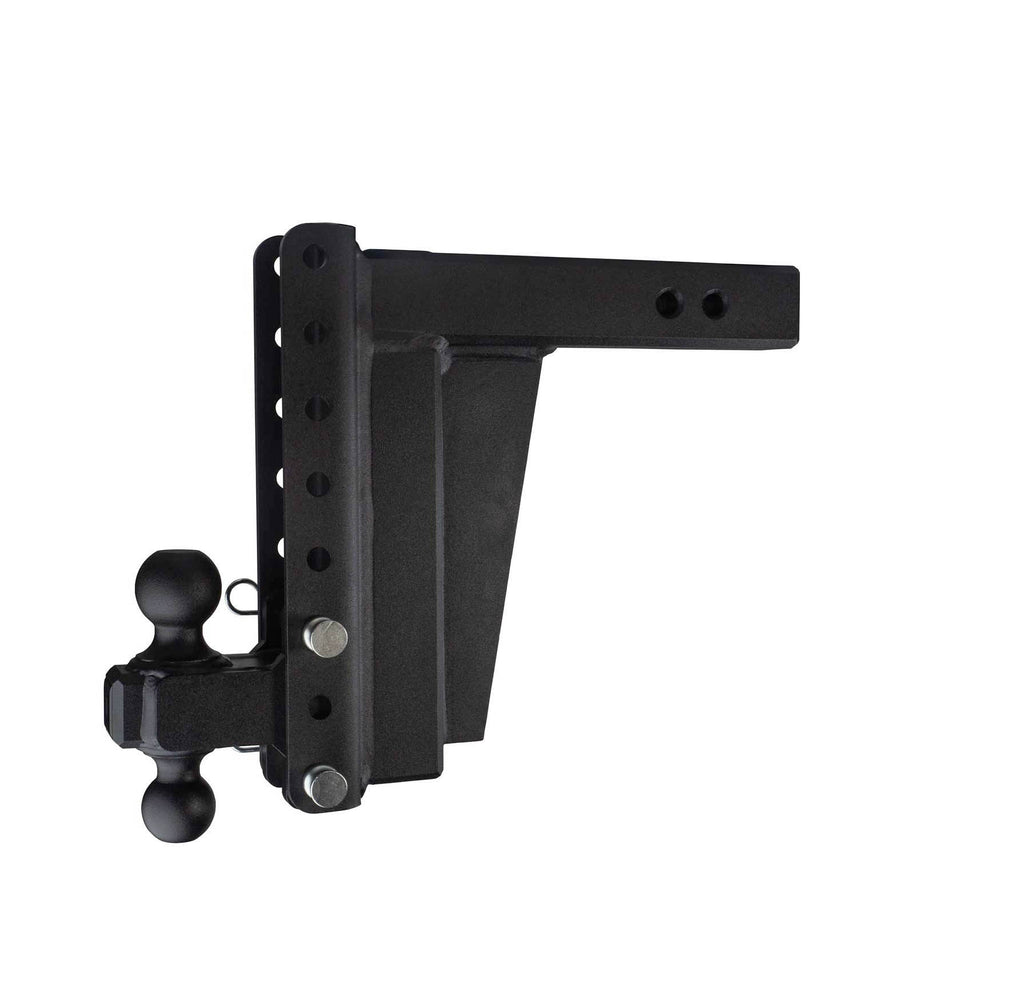

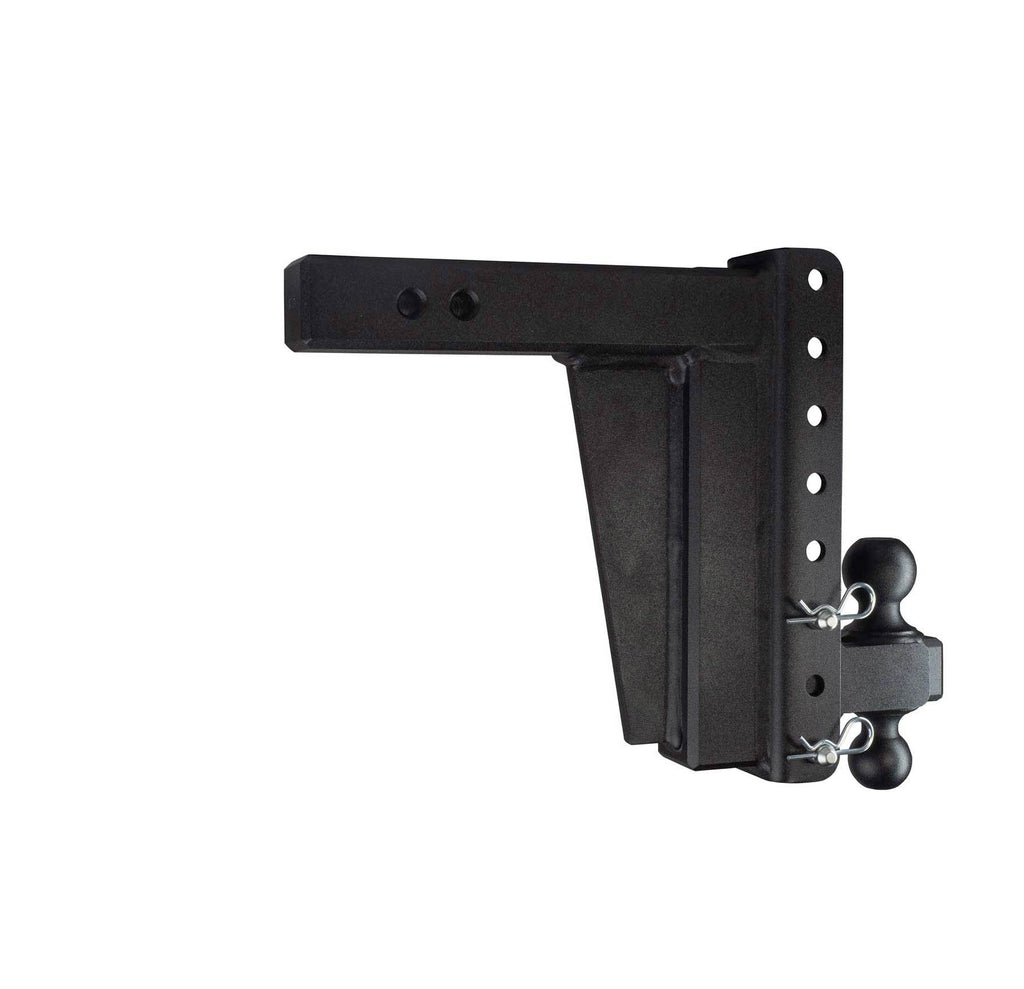

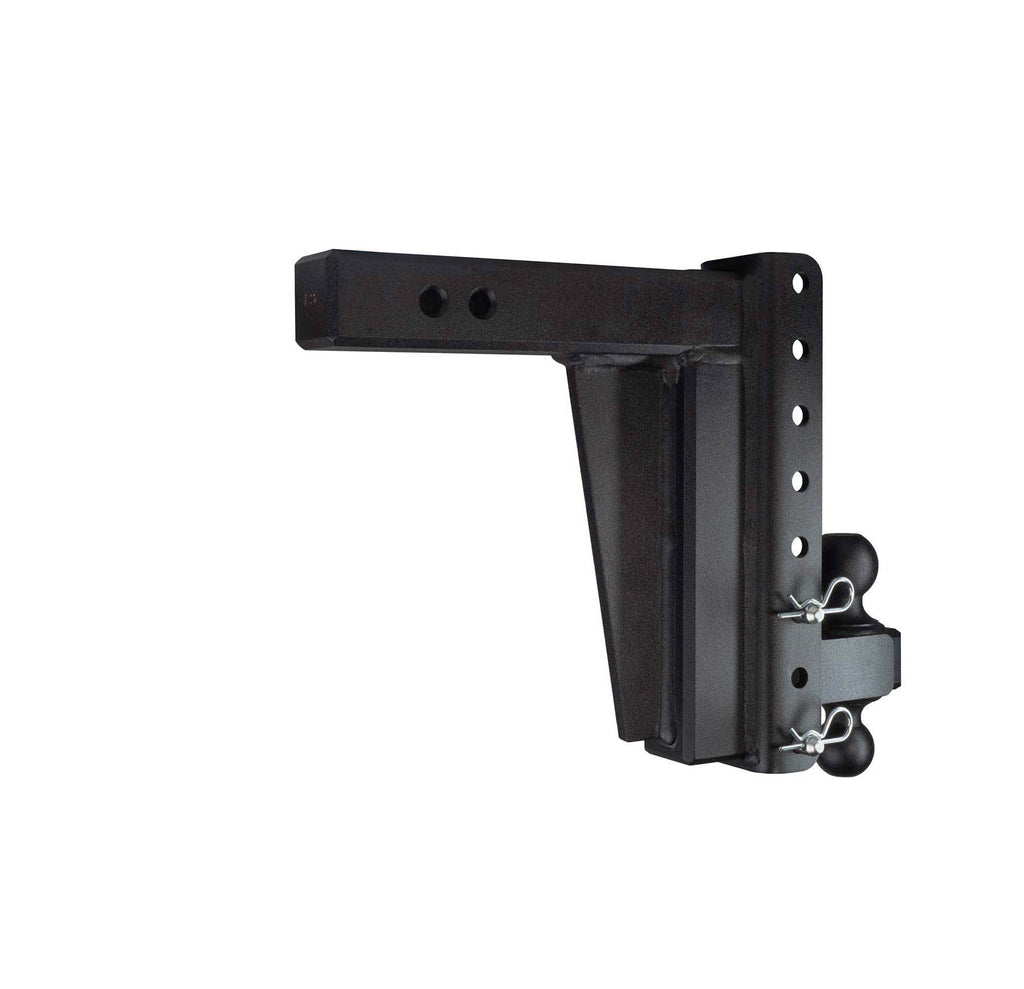

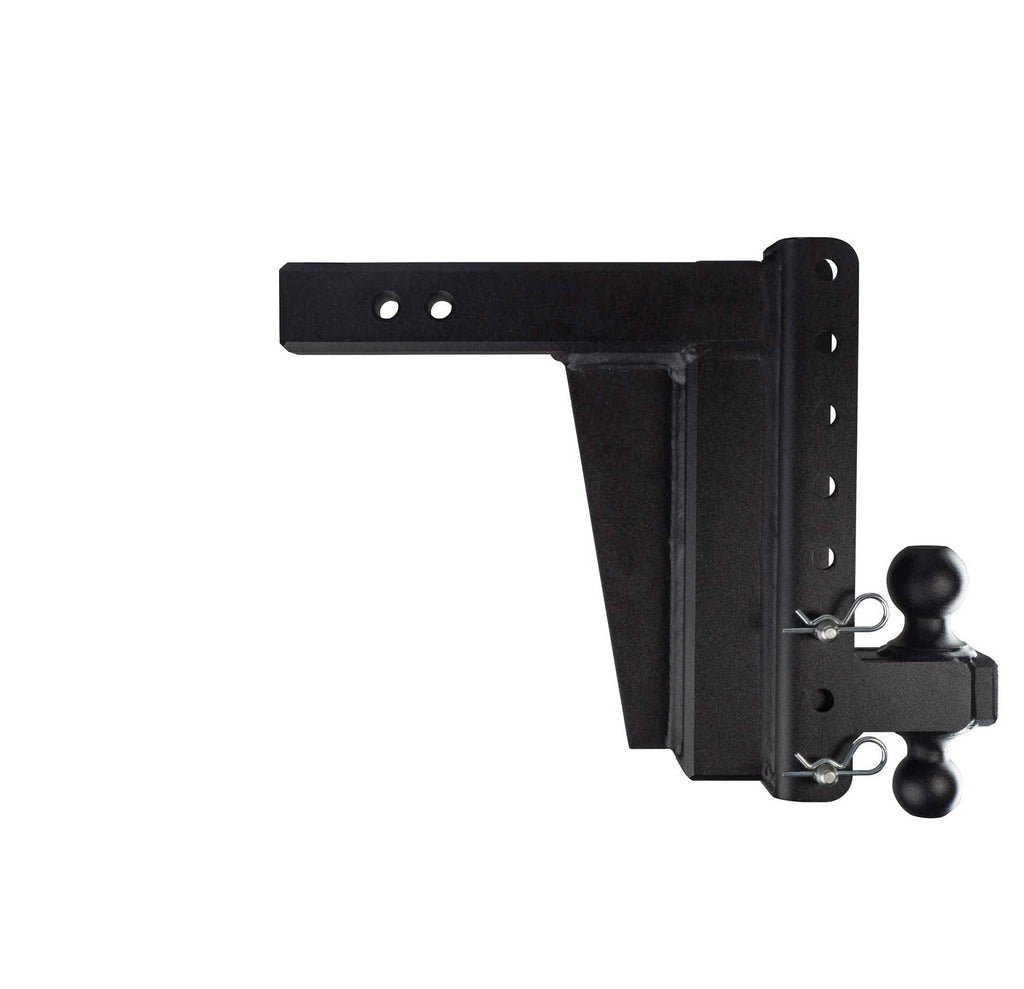

2.5" Extreme Duty 10" Drop/Rise

ED2510

2 reviews
  • Sale
  • Regular price $409.00




THE LAST HITCH YOU'LL EVER NEED!


Our 2.5" Extreme Duty 10" Drop or Rise Hitch is unlike any of our competitors. We worked hard to create one amazing Hitch that does the work of 10.

Our hitches are extensively tested and exceed SAE-J684 testing requirements. They are built to such a high standard that we have never had a single failure. You can see why from the features listed below:

Class 5 Hitch with a 36,000 lb Max Towing Capacity & 6,000 lb Tongue Weight Capacity.

6 Ride Heights That Are Easily Adjustable.

The 2.5" Extreme Duty 10" Drop/Rise Hitch Weighs 79 Pounds.

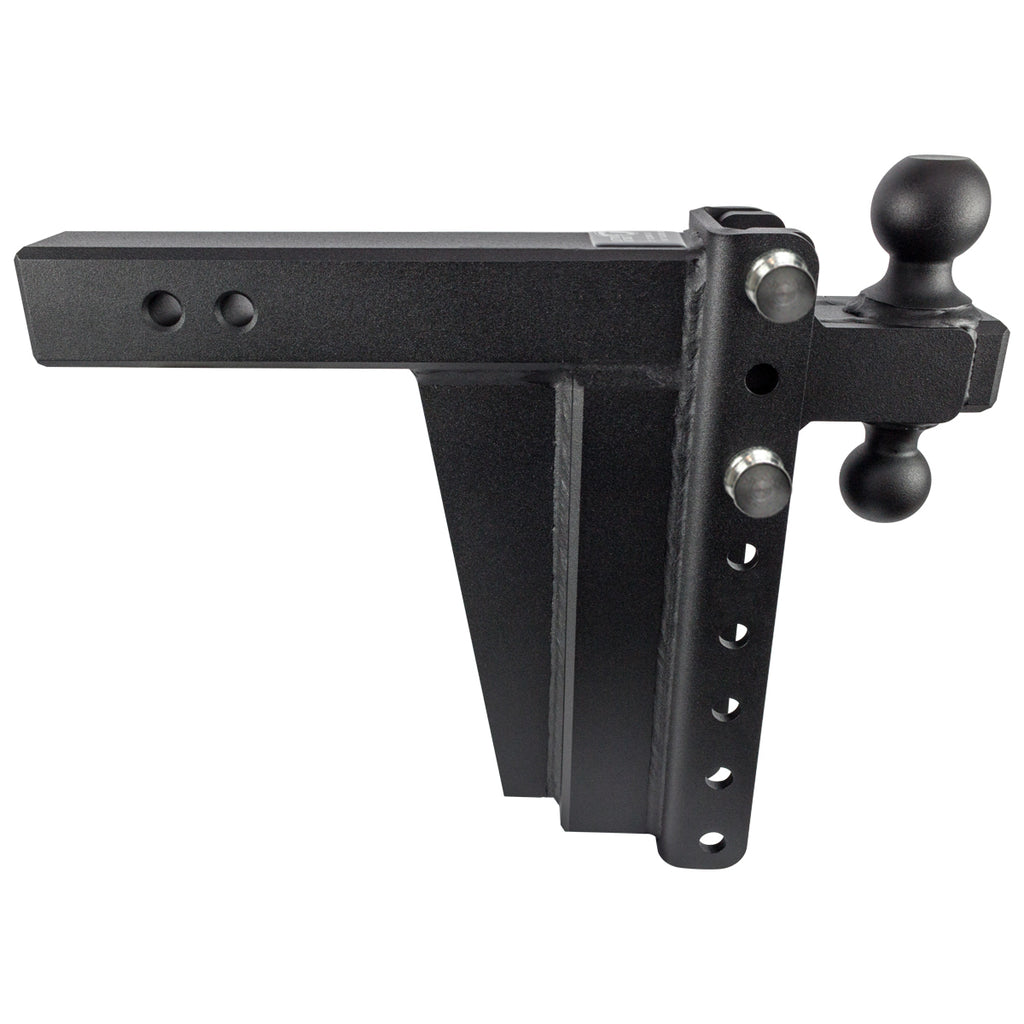

BulletProof 2.5

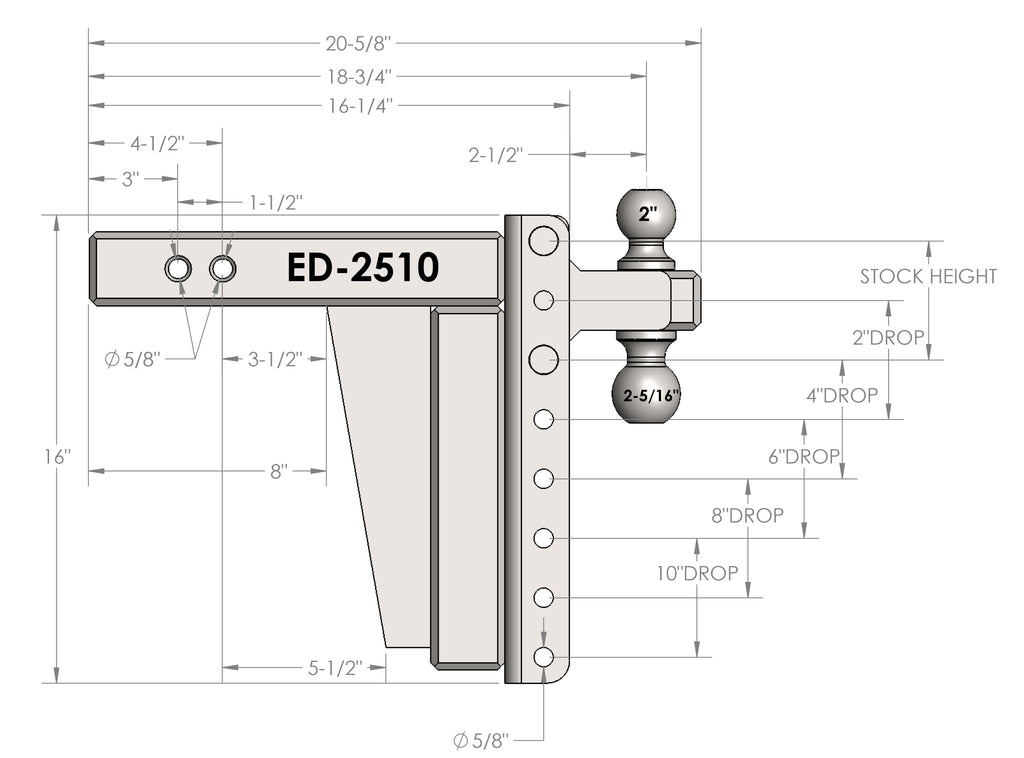

SPECS

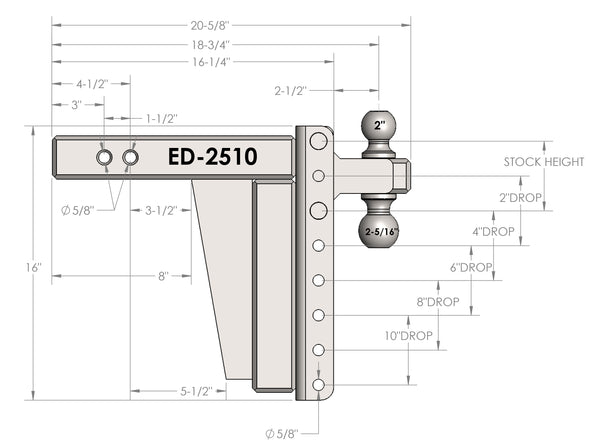

BulletProof Hitch Diagram

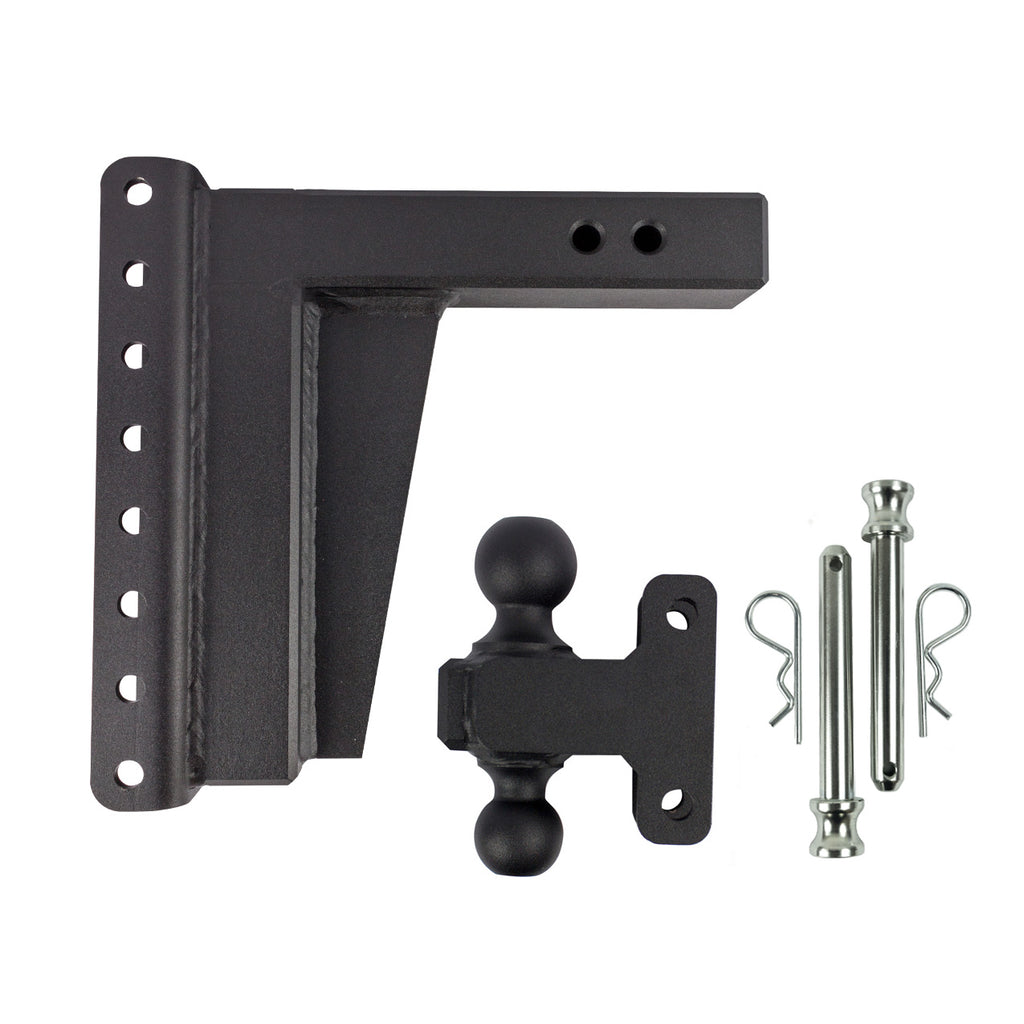

PARTS INCLUDED


Parts Included Description

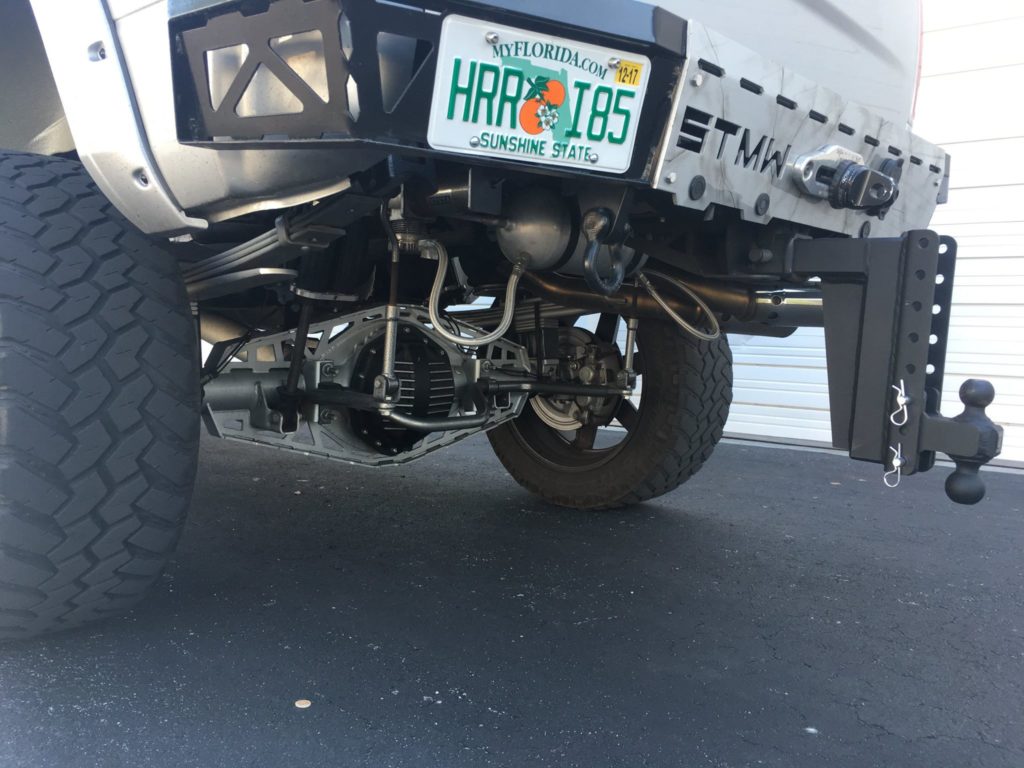

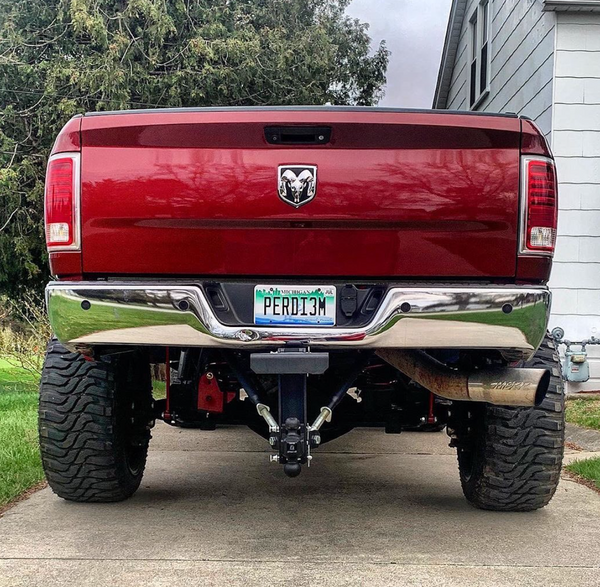

THE ED2510 IN USE

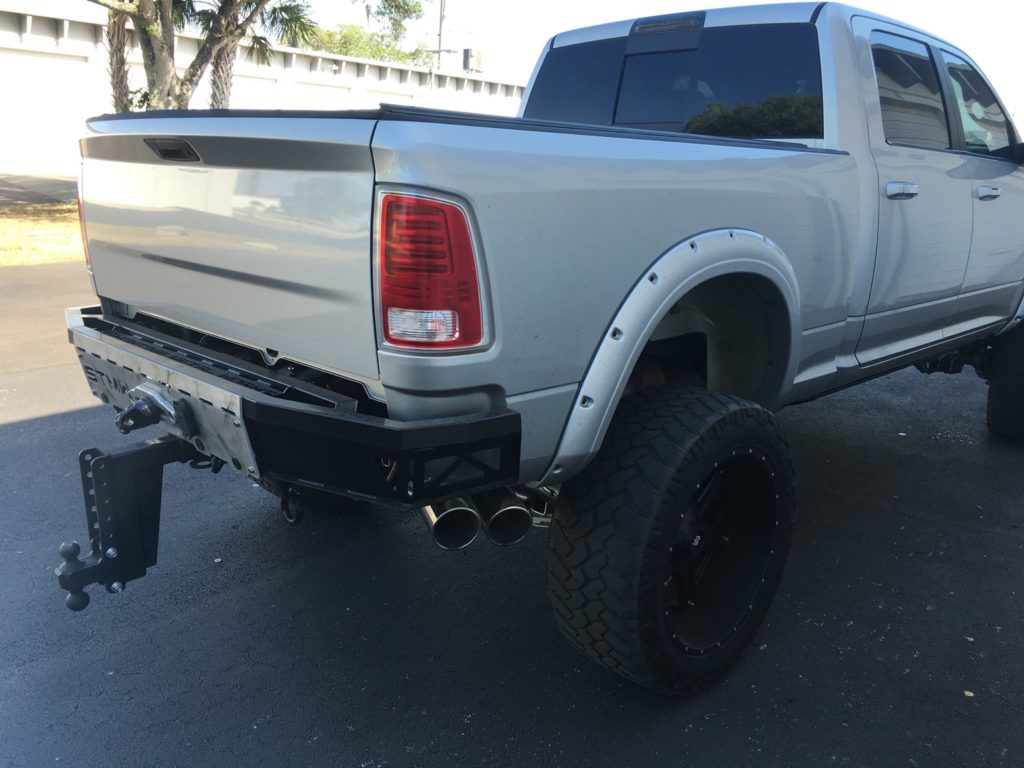

White Ram ED2510

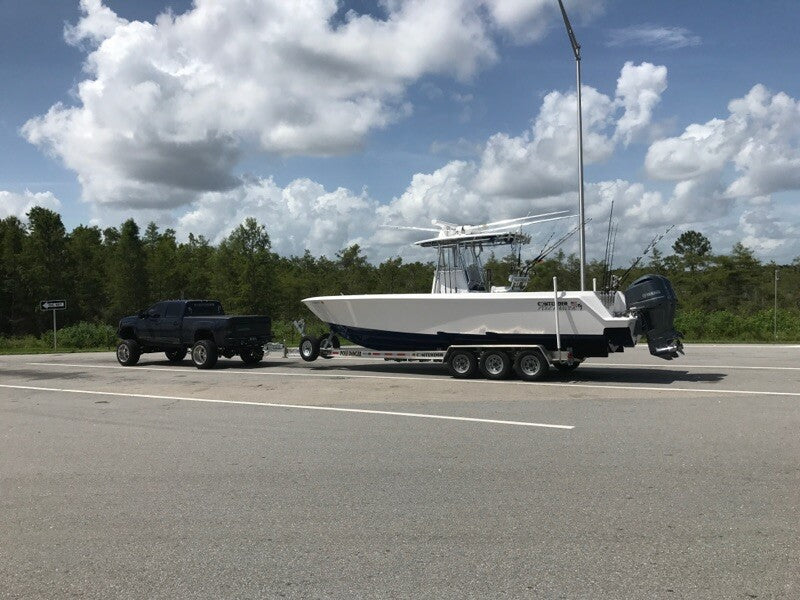

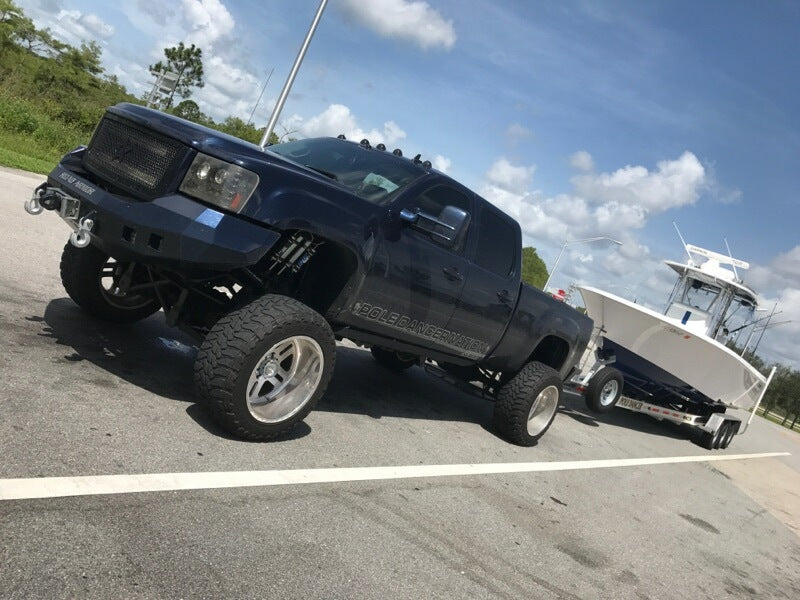

Black Chevy Contender Boat ED2510
White Ram ED2510

EXTREME DUTY DUAL BALL MOUNT


Each adjustable mount includes a 2-ball platform, which fits in the adjustable channel of the hitch. The 2 hitch balls are welded together onto the solid steel platform for maximum strength and stability.



Note: We can include any of the dual ball size combinations listed below with your hitch order.

Select the sizes needed for your dual ball from the drop-down option above.

Available Dual Ball Combinations Include:

  2" & 2-5/16" Dual Ball - No Additional Cost (Most Common Size)

1-7/8" & 2-5/16" Dual Ball - No Additional Cost

1-7/8" & 2" Dual Ball - No Additional Cost

Extreme Duty Sway Control Ball Mount - $74.95 Upgrade



Extreme Duty Dual Ball Weight Ratings

1-7/8" Ball: 6,000 lb. Rating

2" Ball:  12,000 lb. Rating

2-5/16" Ball:  36,000 lb. Rating

BulletProof Dual Ball and 2 Corrosion Resistant Pins Description

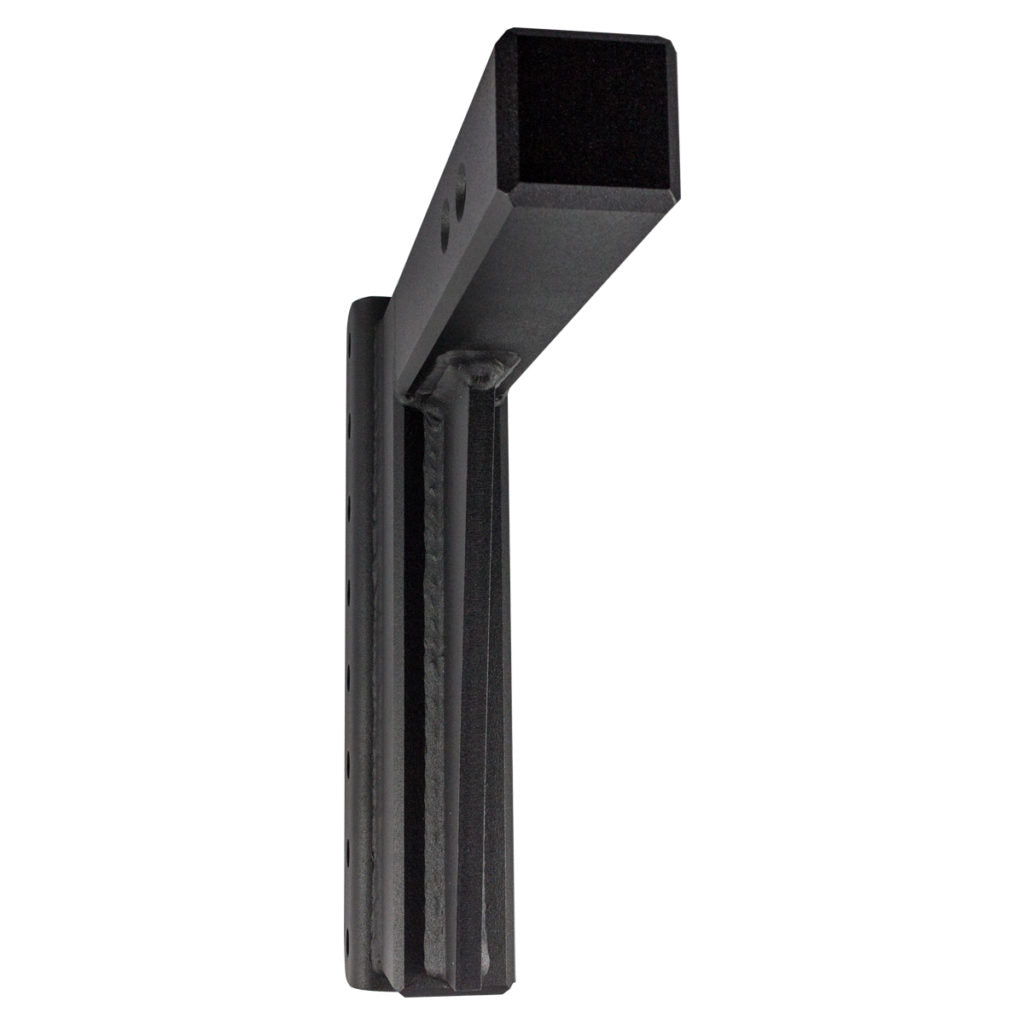

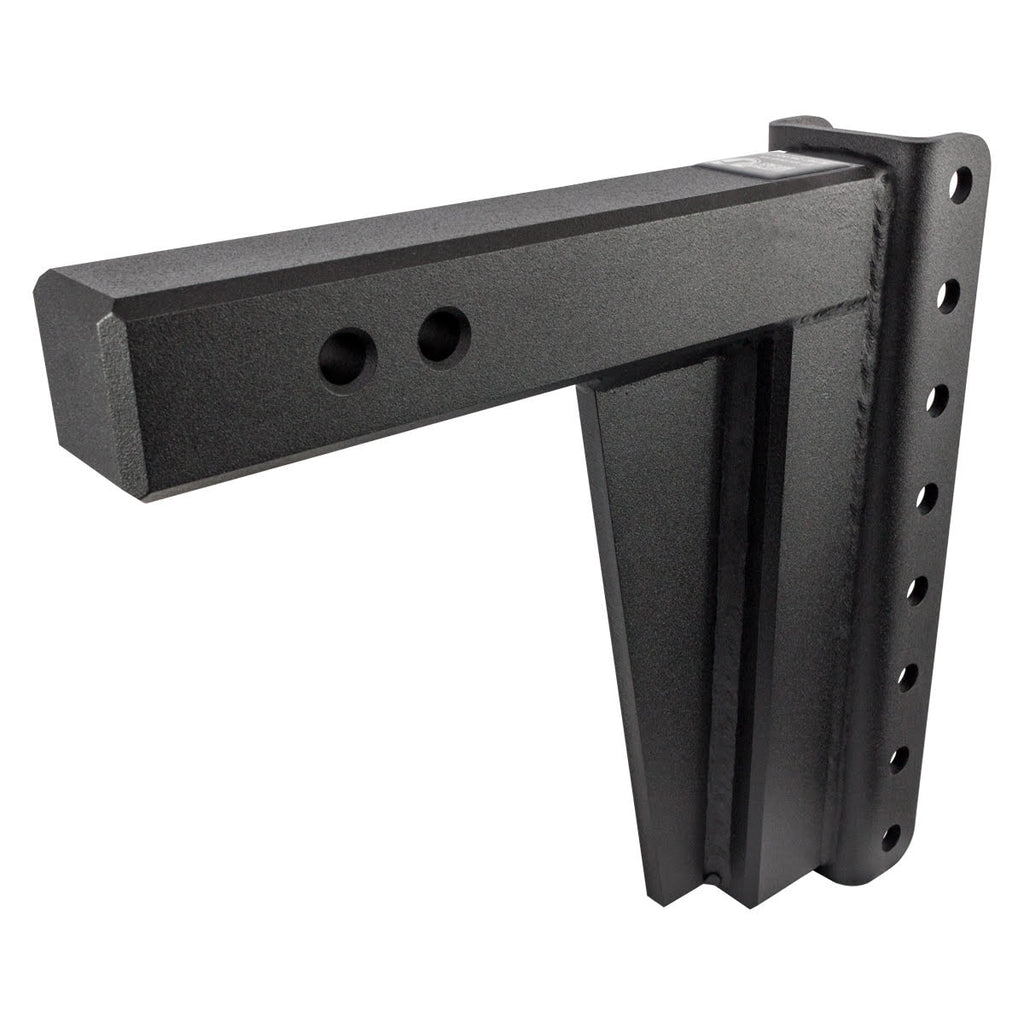

SOLID STEEL SHANK


The hitch shank is solid steel all the way through and has chamfered edges so it can easily slide into & out of your hitch receiver. It also comes with two pin holes for more adjustment options.

The textured powder coated finish creates a durable surface to help protect your hitch.

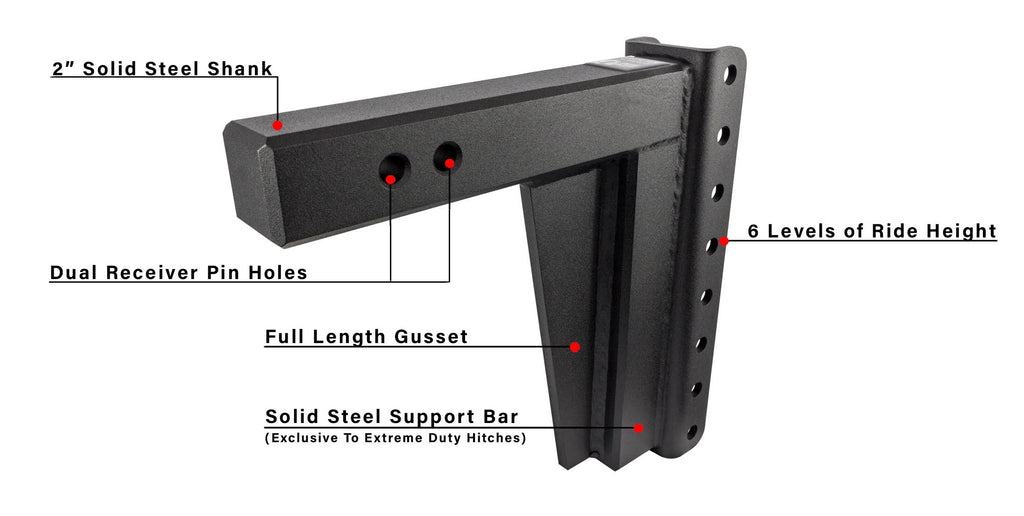

Features of BulletProof Solid Steel Shank Description

SIGNATURE BLACK TEXTURED POWDER COAT


All BulletProof Hitches™ features a durable corrosion-resistant powder coat. This process starts with an aggressive sandblast to remove all impurities and create a clean surface for the powder coat. After the sandblast process, the hitch moves through a 5 stage pre-treatment wash to remove any oil or residue. The metal itself is then sealed in to eliminate the possibility of corrosion. The final step is an application of our signature black textured powder coat which is applied by a Fanuc robot to ensure consistent thickness across the hitch.

Powder Coated 10

CNC Machining


The components of the BulletProof Hitch™ are machined in house on our state of the art Haas CNC machines. The CNC machines use Renishaw probes, which allows us to manufacture all of our parts to an extremely tight tolerance. This primarily ensures that each hitch and ball combo fit together without slop or excess movement when attached to your vehicle.

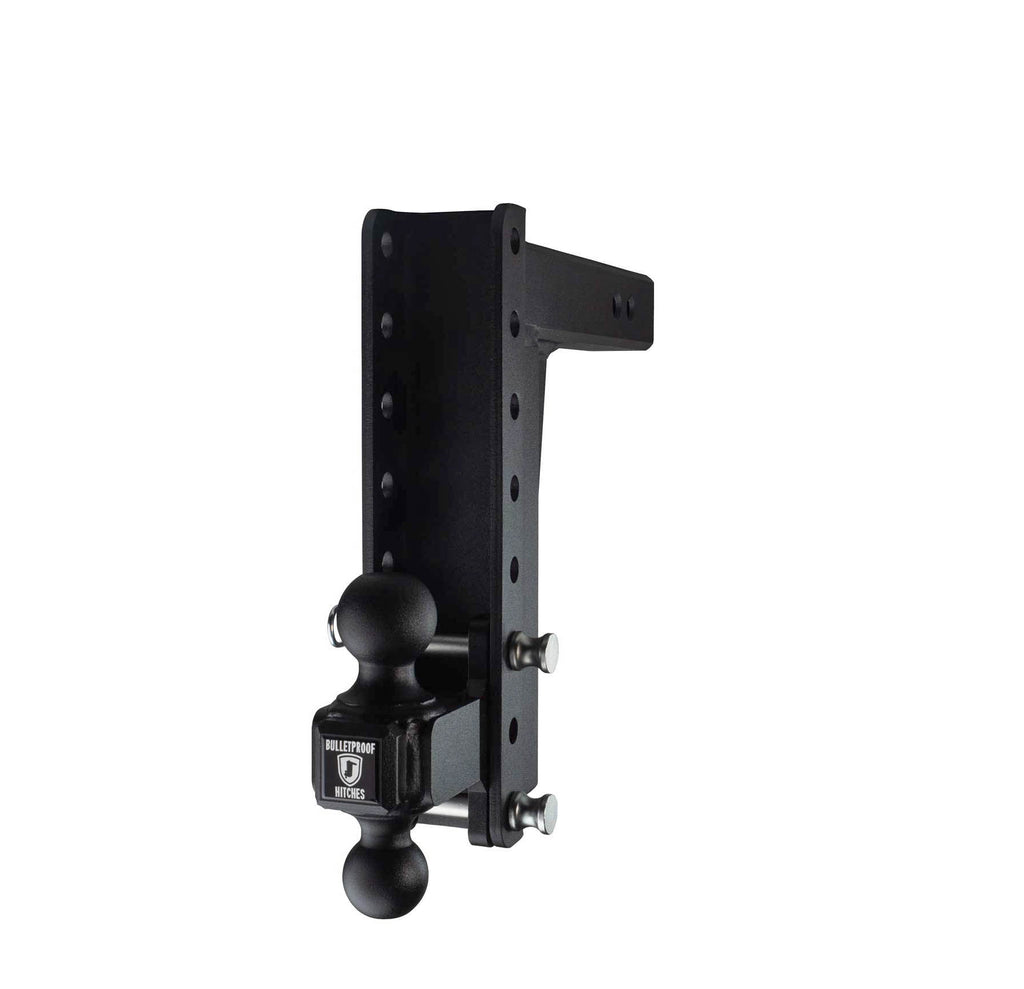

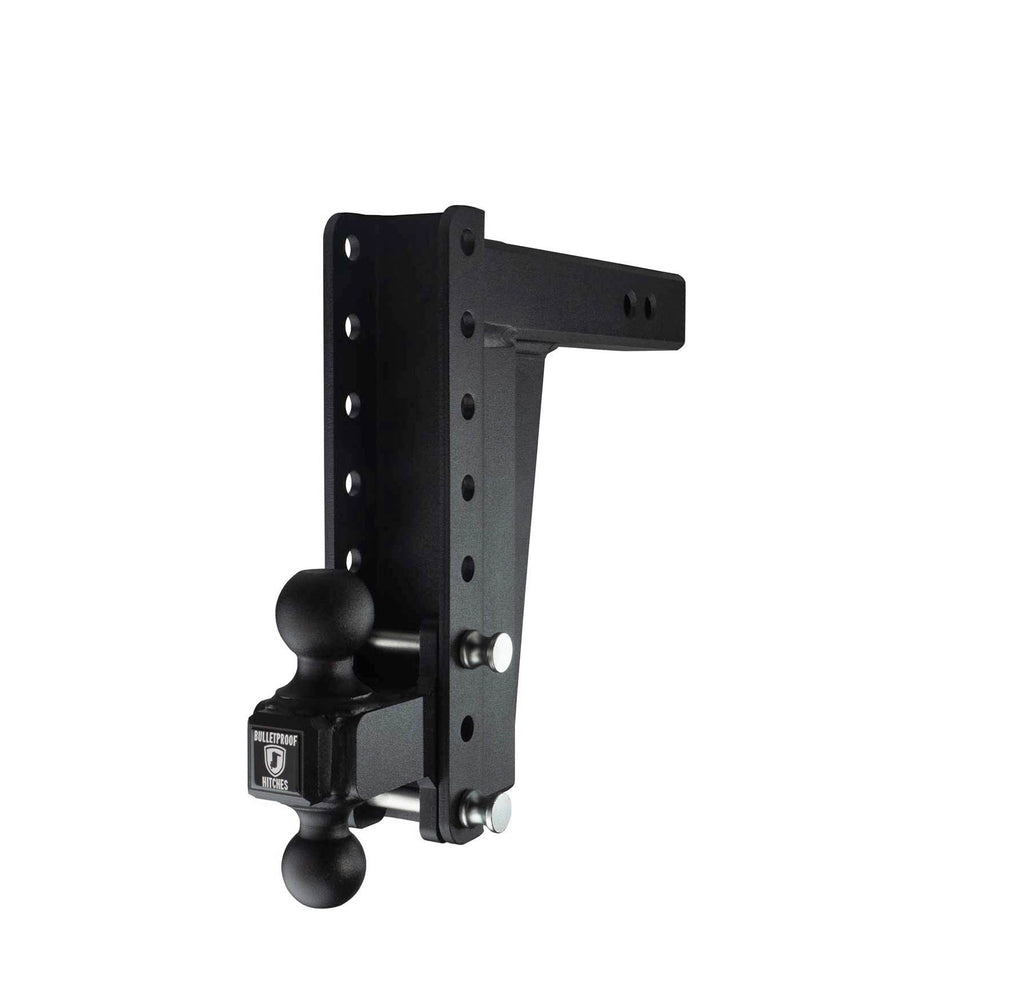

Using Our Hitches in the Rise Position


All of our hitches can be used in the drop or rise position and maintain the same weight capacity in either position.

This 2.5" Extreme Duty 10" drop/rise hitch has a max towing capacity of 36,000 lbs and a tongue weight capacity of 6,000 lbs in both the drop & rise position.


Compare The BulletProof Heavy Duty VS. Extreme Duty Hitch


2.5" Heavy Duty 10" Drop/Rise 2.5" Extreme Duty 10" Drop/Rise

$339

$389

Max Towing Capacity Rated to 22,000 lbs

Max Towing Capacity Rated to 36,000 lbs

Tongue Weight Capacity Rated to 3,000 lbs

Tongue Weight Capacity Rated to 6,000 lbs

Compatible With Pintle Attachment (22,000 lb Towing Capacity)

Compatible With Pintle Attachment (36,000 lb Towing Capacity)

Solid Steel Shank

Solid Steel Shank & Solid Steel Vertical Support Bar Behind Channel


Shop Our Compatible Accessories



Check Out Our Full Line of BulletProof Accessories

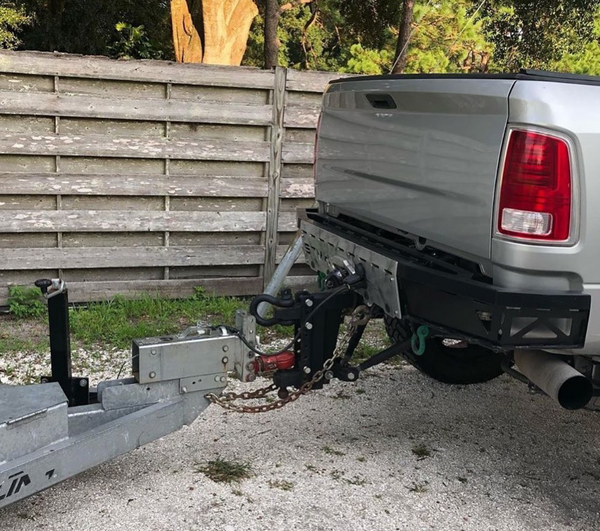

The BulletProof 2.5" Extreme Duty 10" Drop/Rise Hitch In-Use


Customer Reviews
5 Based on 2 Reviews
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
R
02/22/2019
Robert
Two Stars

Pull my 30ft 8k lbs boat and it did great job!

C
02/22/2019
Customer
Five Stars

Best hitch and the last hitch you'll ever buy. No shaking and trailer straight as an arrow.
