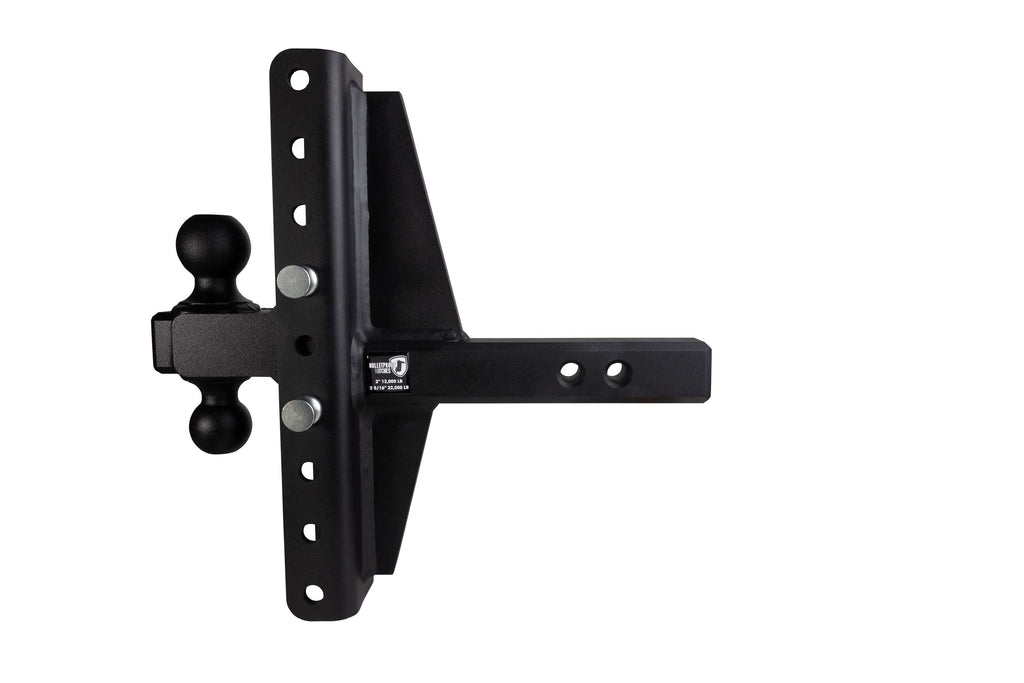

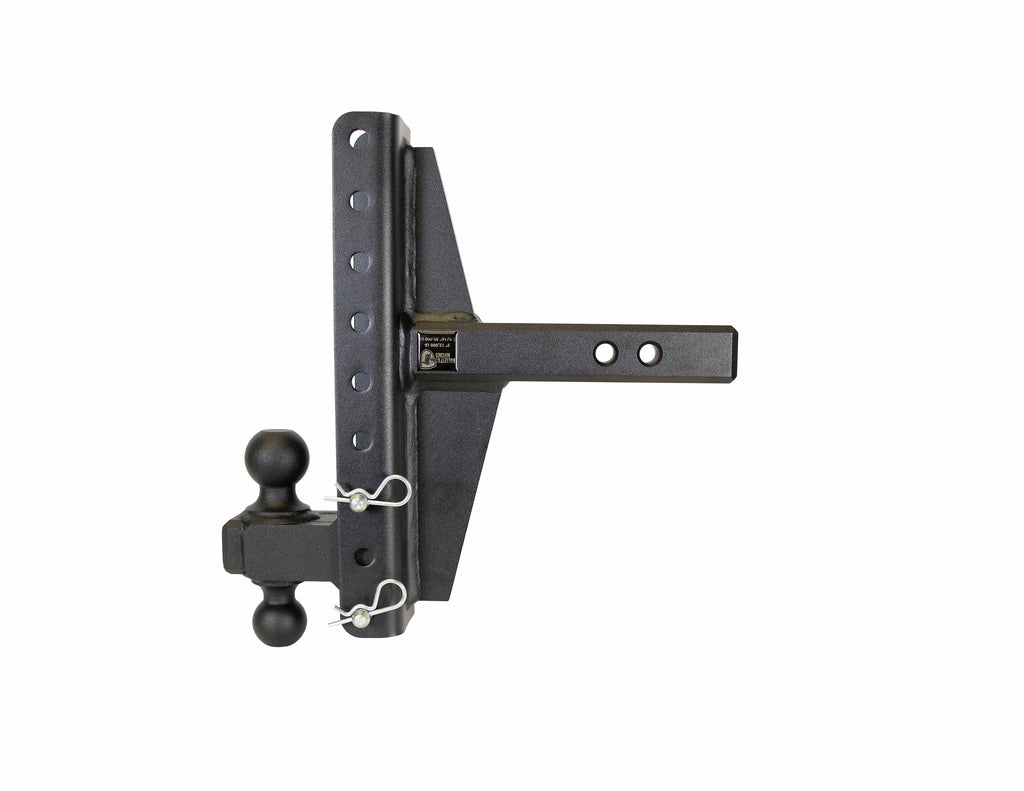

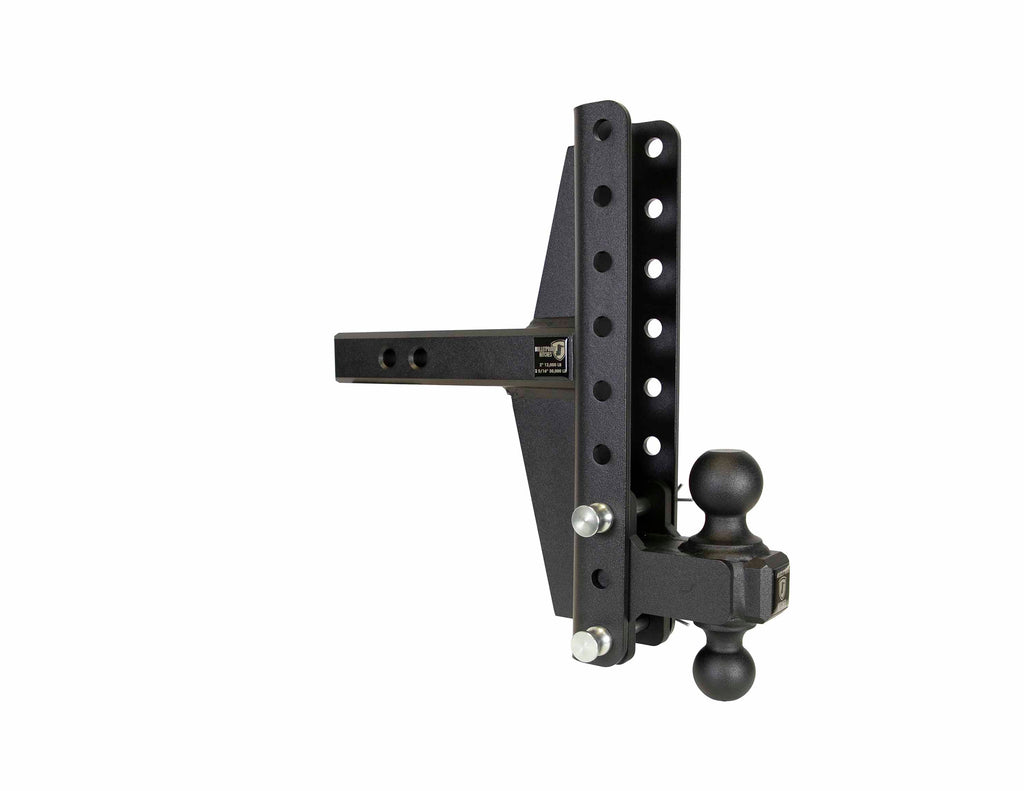

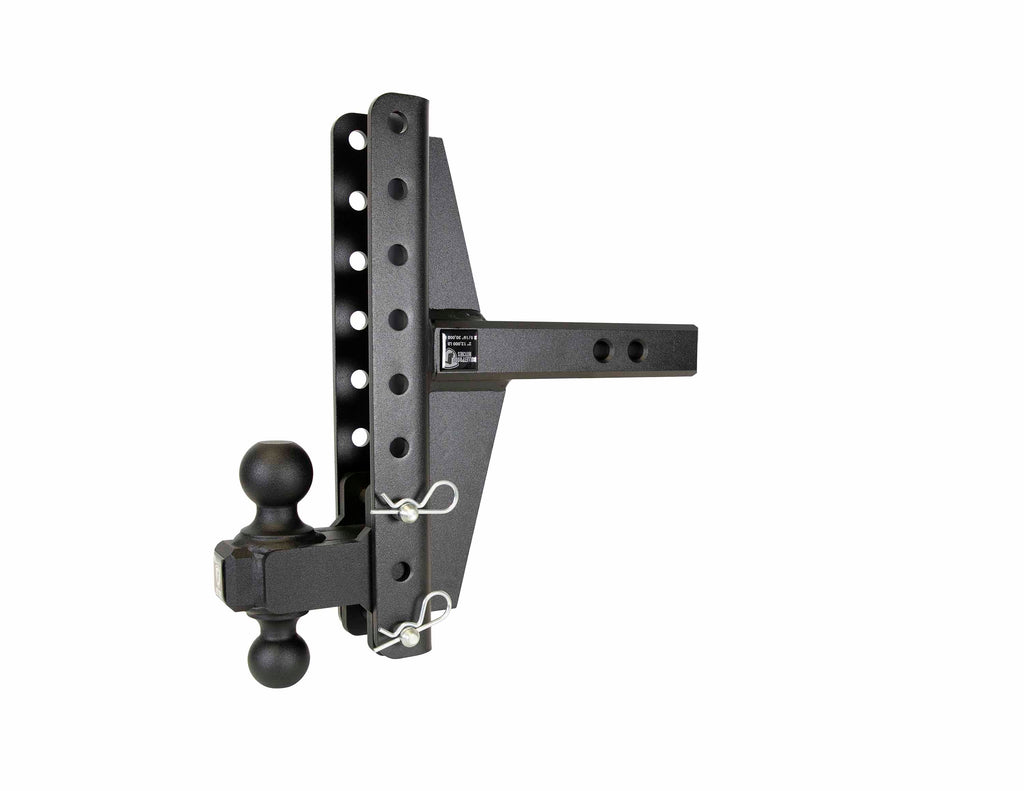

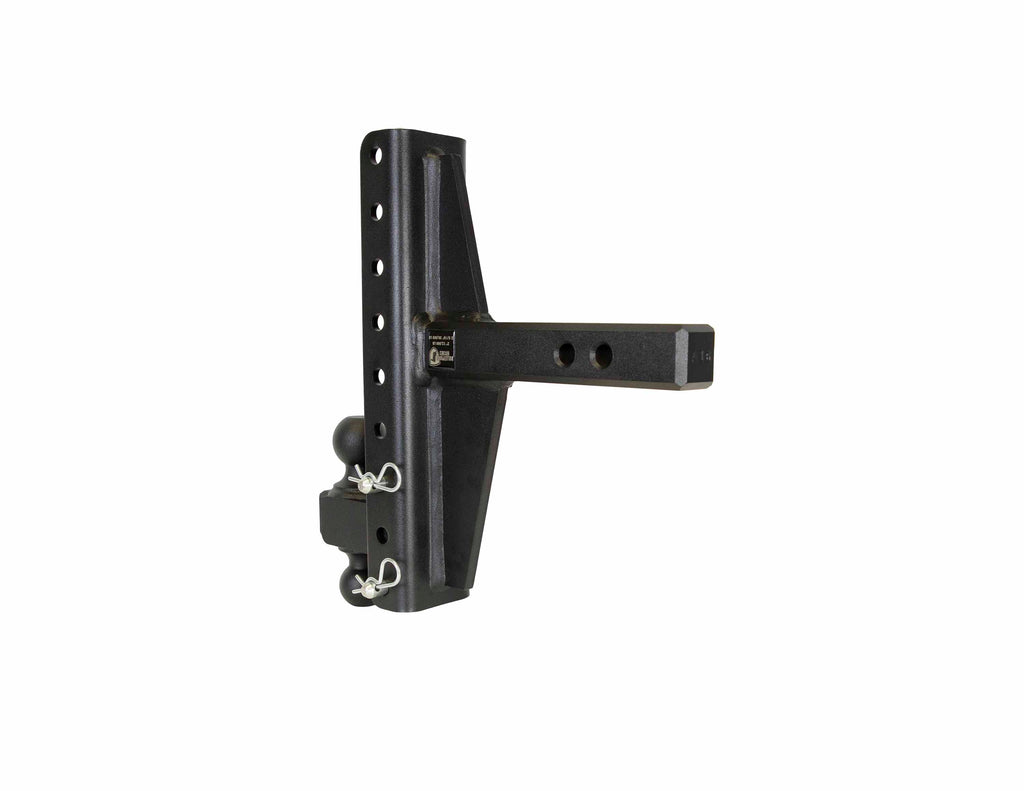

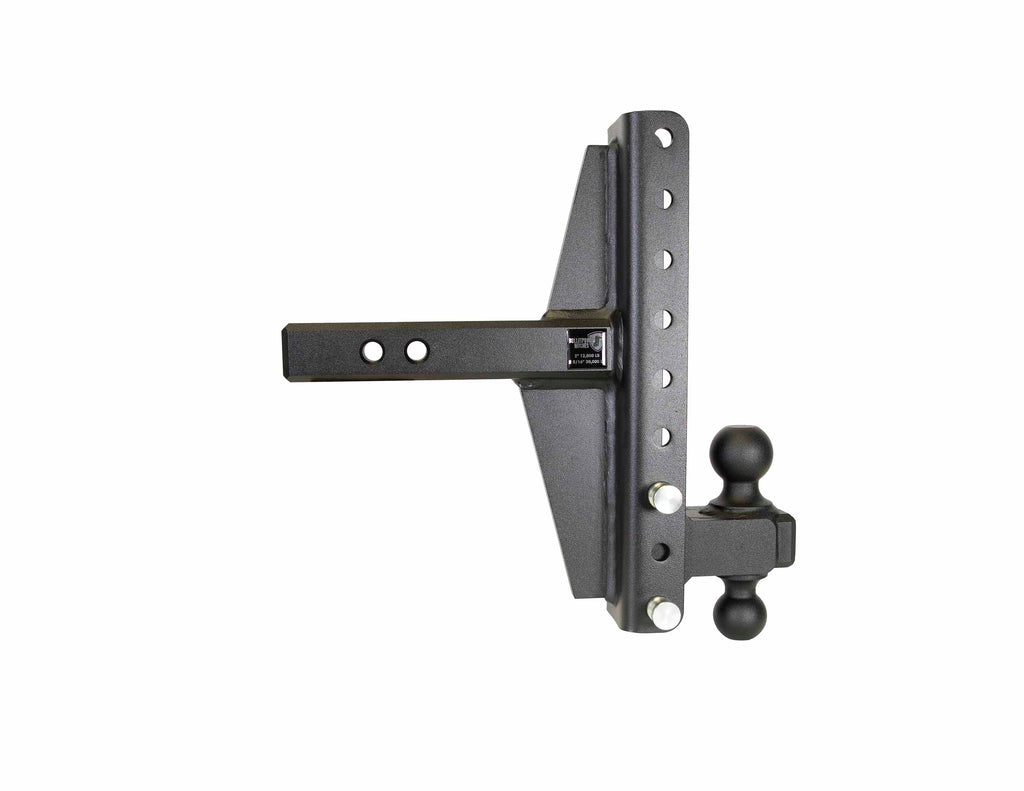

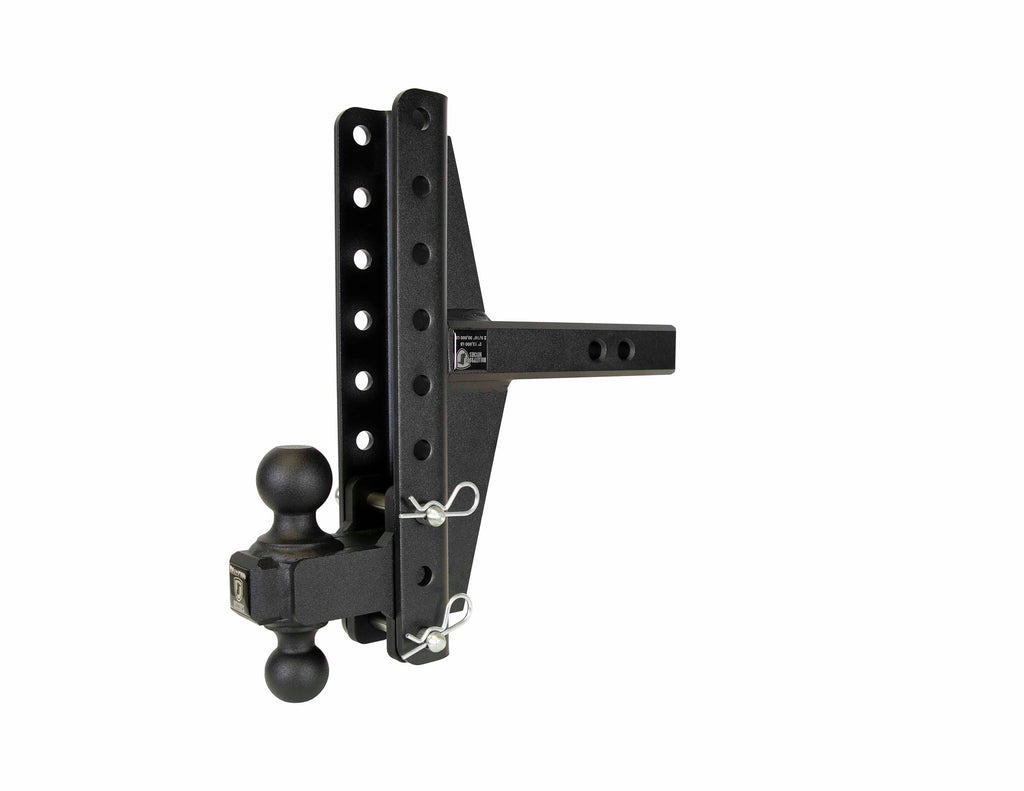

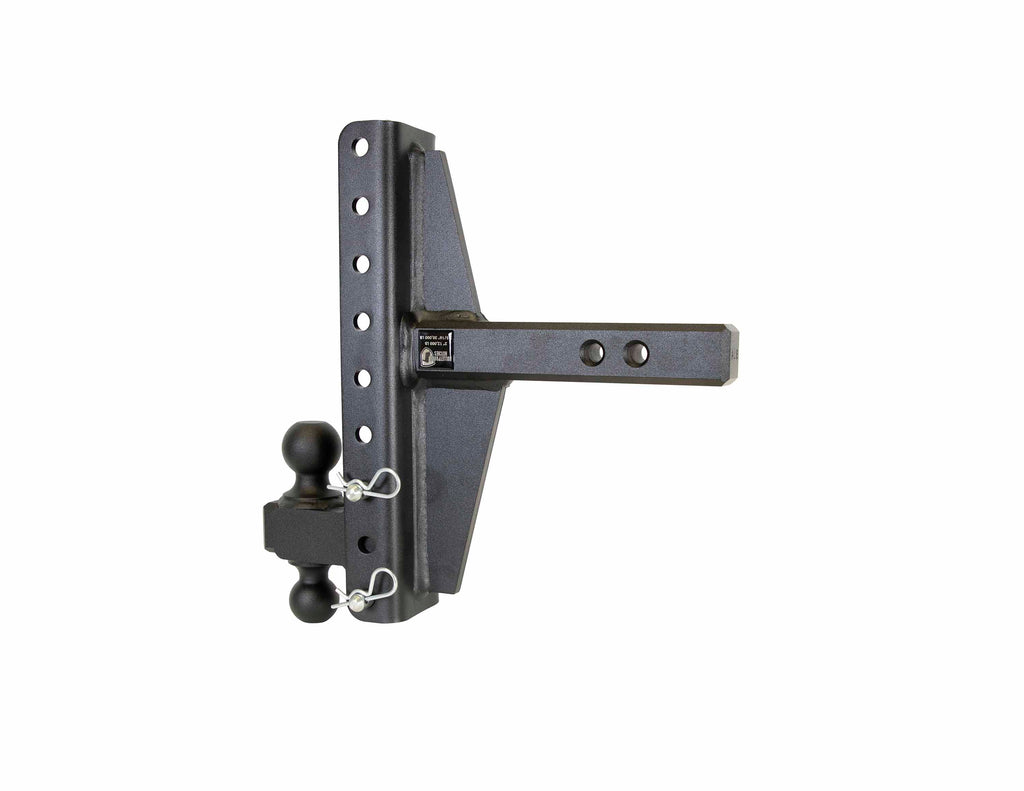

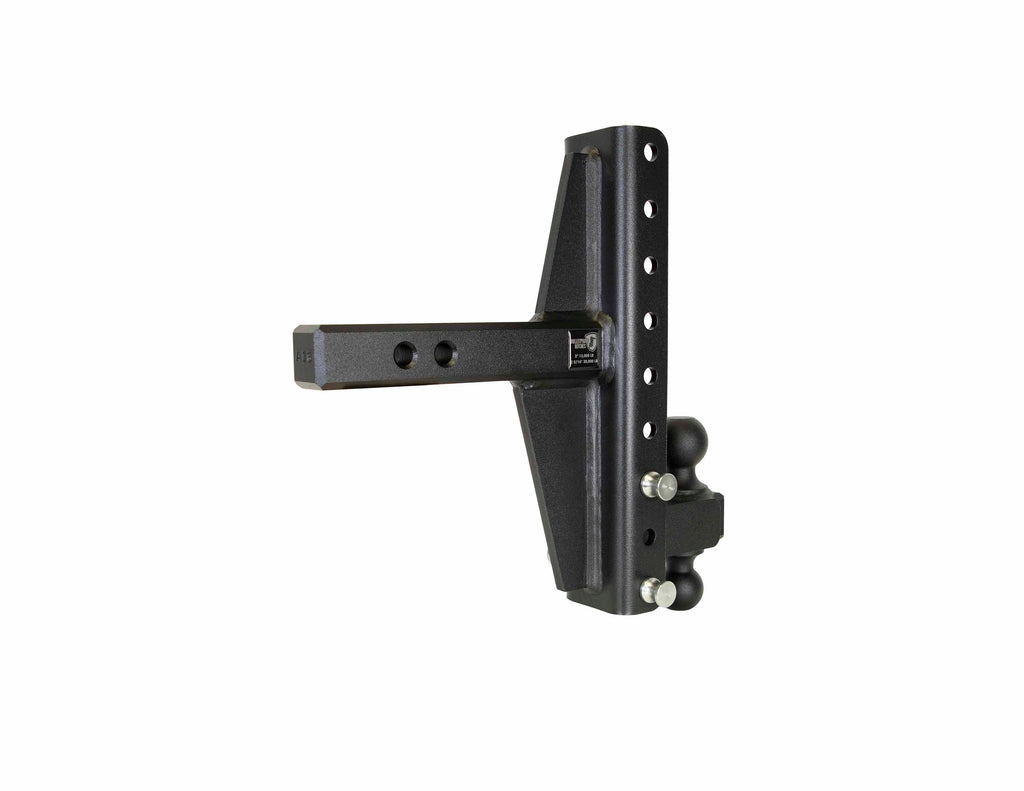

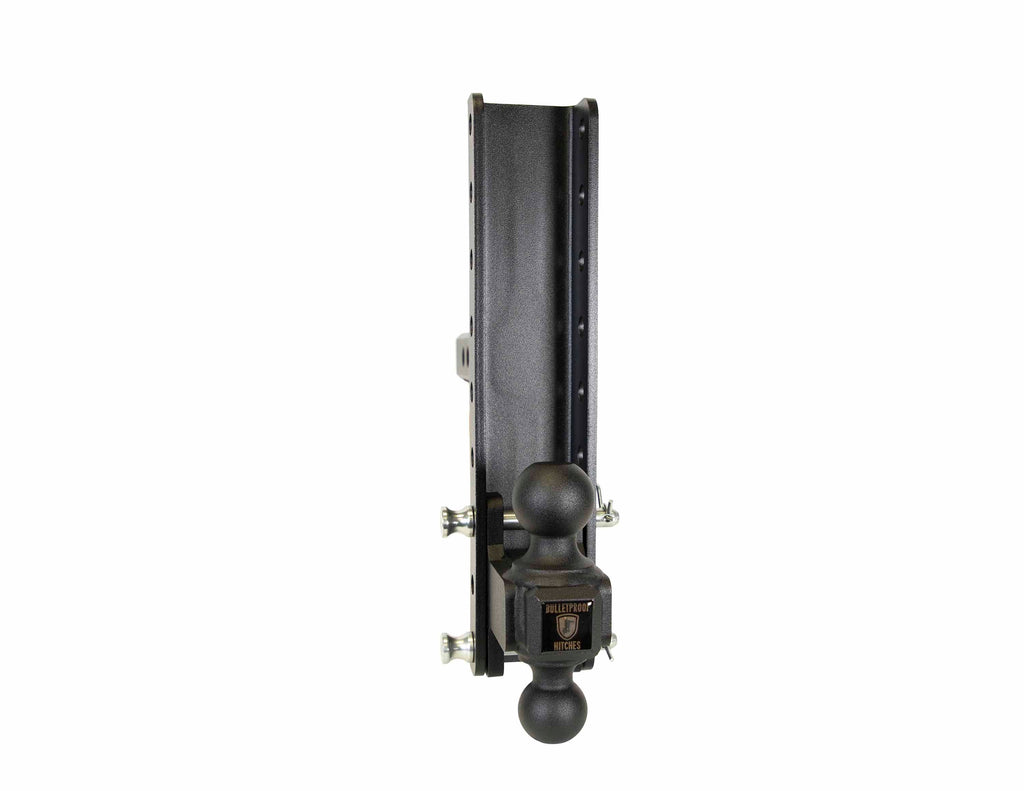

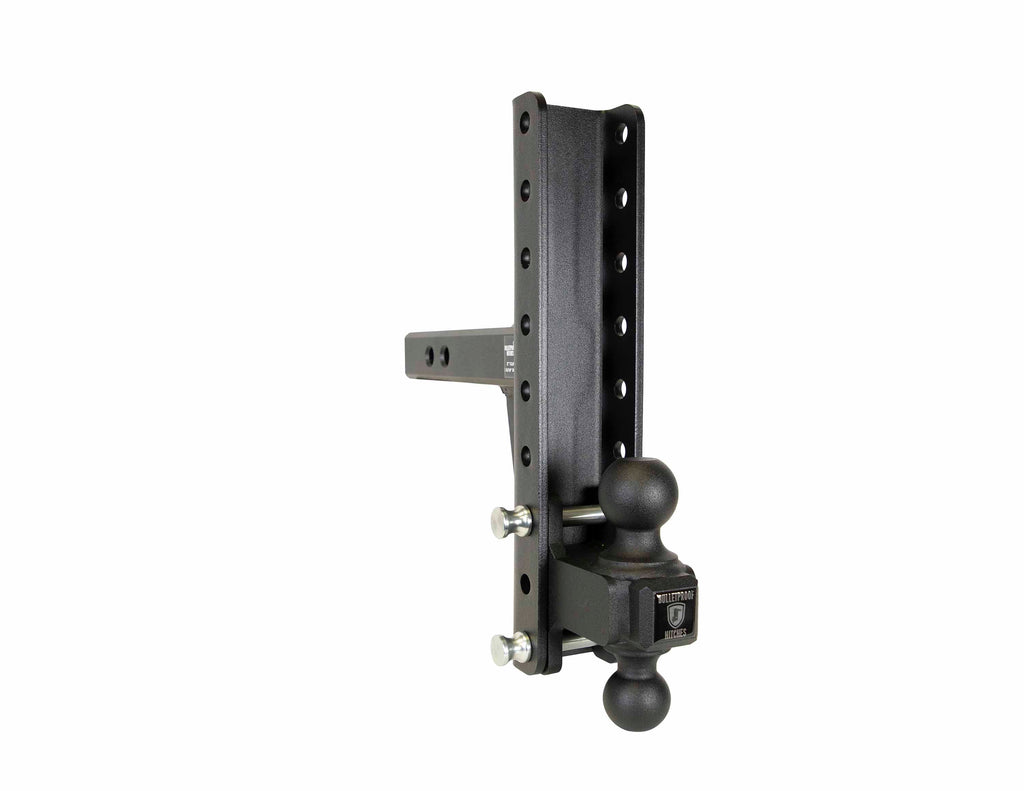

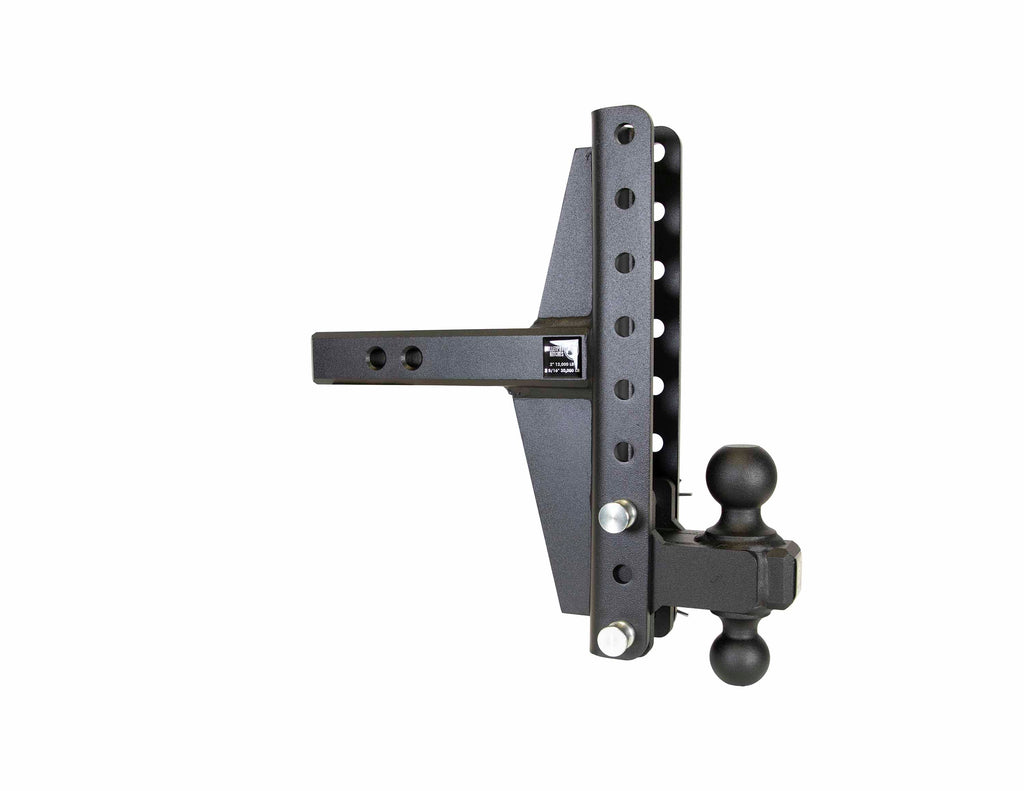

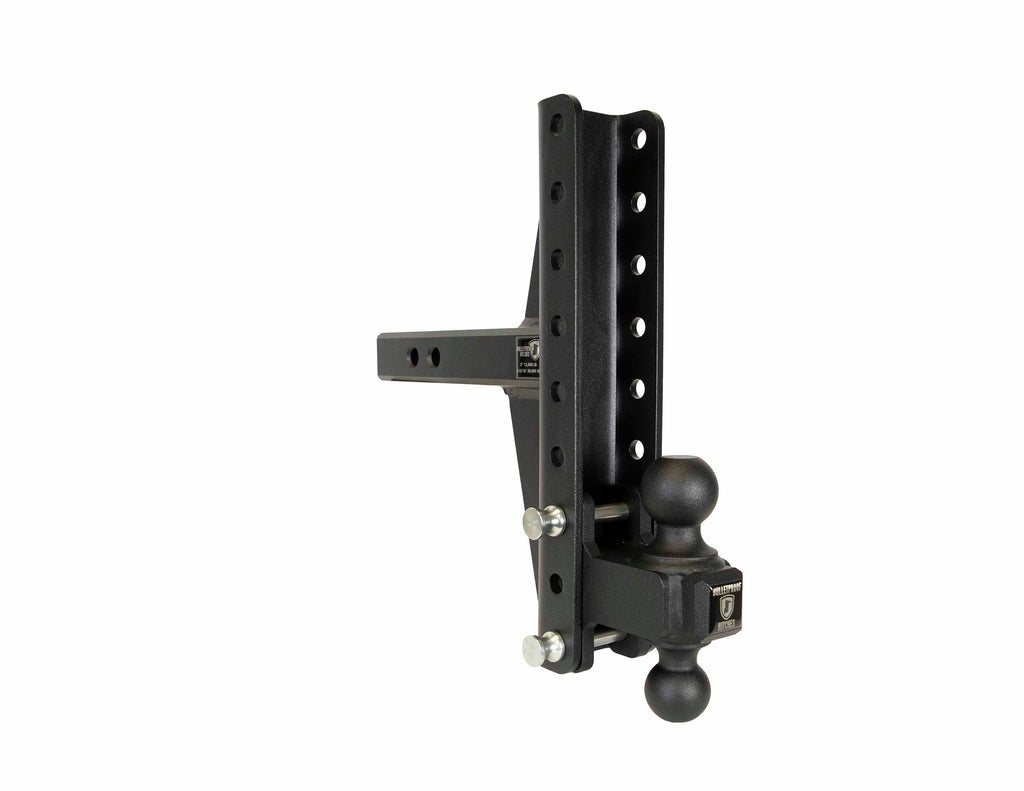

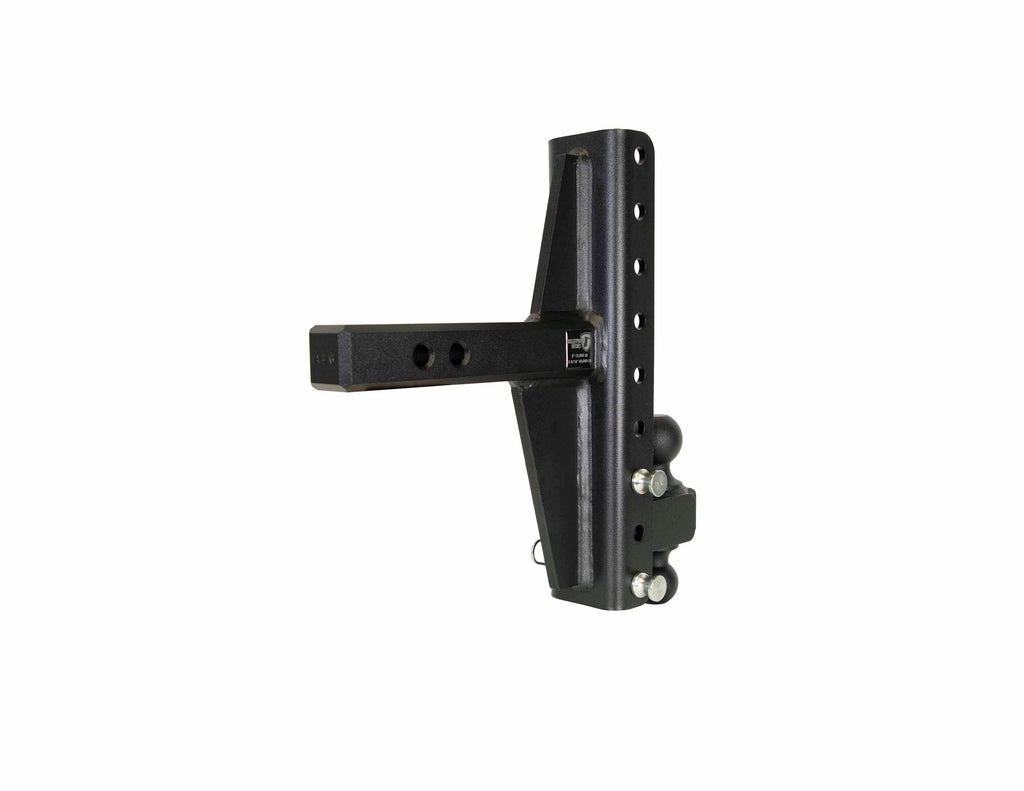

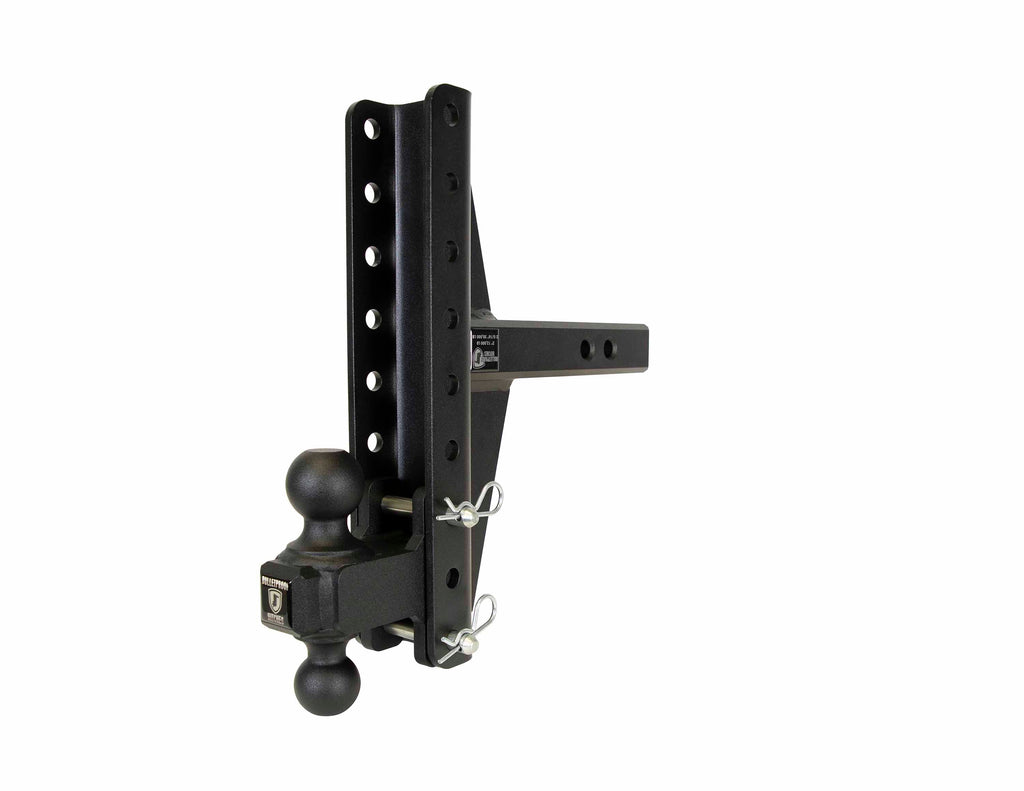

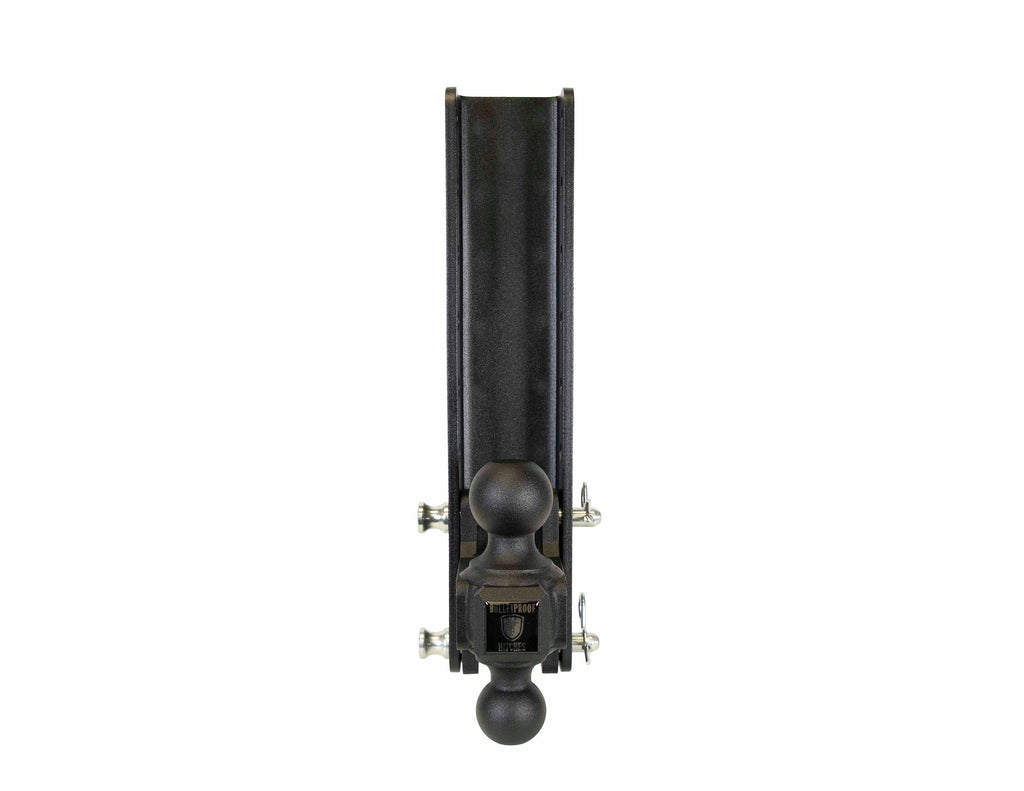

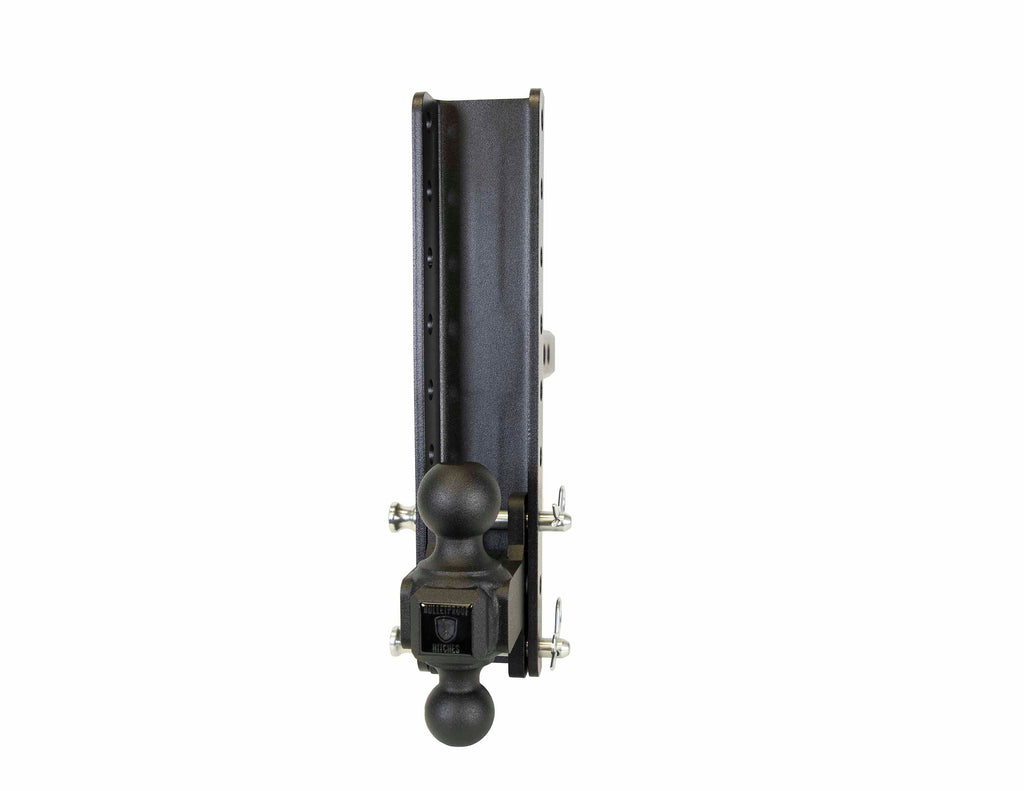

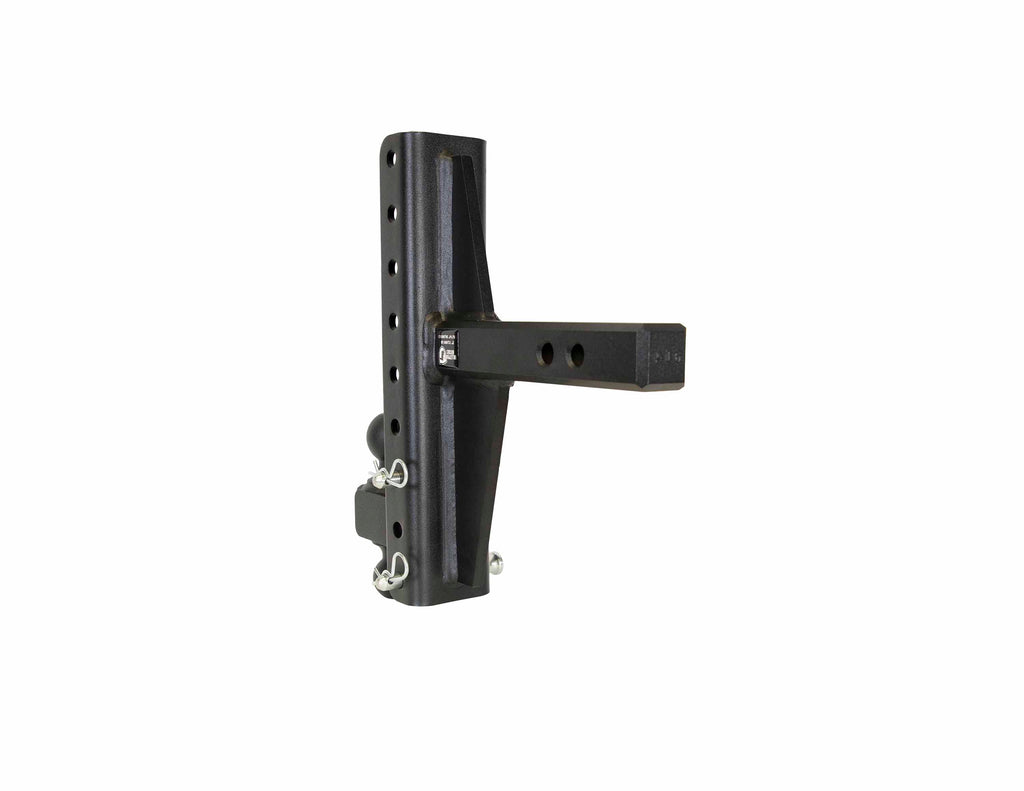

2.0" Extreme Duty 4" & 6" Offset Hitch

SKU: ED20OFFSET

Product Description

Our 2.0" Extreme Duty 6" Drop 4" Rise Hitch is unlike any of our competitors' products. We worked hard to create 1 amazing Hitch that does the work of 10.

Our hitches are extensively tested and exceed SAE-J684 testing requirements. They are built to such a high standard that we have never had a single failure. You can see why from the features listed below:

Class 4 Hitch with 30,000 lb Max Towing Capacity & 6,000 lb Tongue Weight Capacity

7 Ride Heights that are Easily Adjustable.

The 2.0" Extreme Duty 4" & 6" Drop/Rise Offset Hitch Weighs 47 Pounds.

*PATENT PENDING


2.0-Inch Extreme Duty 4-Inch & 6-Inch Offset Hitch- Production Description

Our 2.0" Extreme Duty 6" Drop 4" Rise Hitch is unlike any of our competitors' products. We worked hard to create 1 amazing Hitch that does the work of 10.

Our hitches are extensively tested and exceed SAE-J684 testing requirements. They are built to such a high standard that we have never had a single failure. You can see why from the features listed below:

Class 4 Hitch with 30,000 lb Max Towing Capacity & 6,000 lb Tongue Weight Capacity

7 Ride Heights that are Easily Adjustable.

The 2.0" Extreme Duty 4" & 6" Drop/Rise Offset Hitch Weighs 47 Pounds.

*PATENT PENDING


2.0-Inch Extreme Duty 4-Inch & 6-Inch Offset Hitch- Production Description

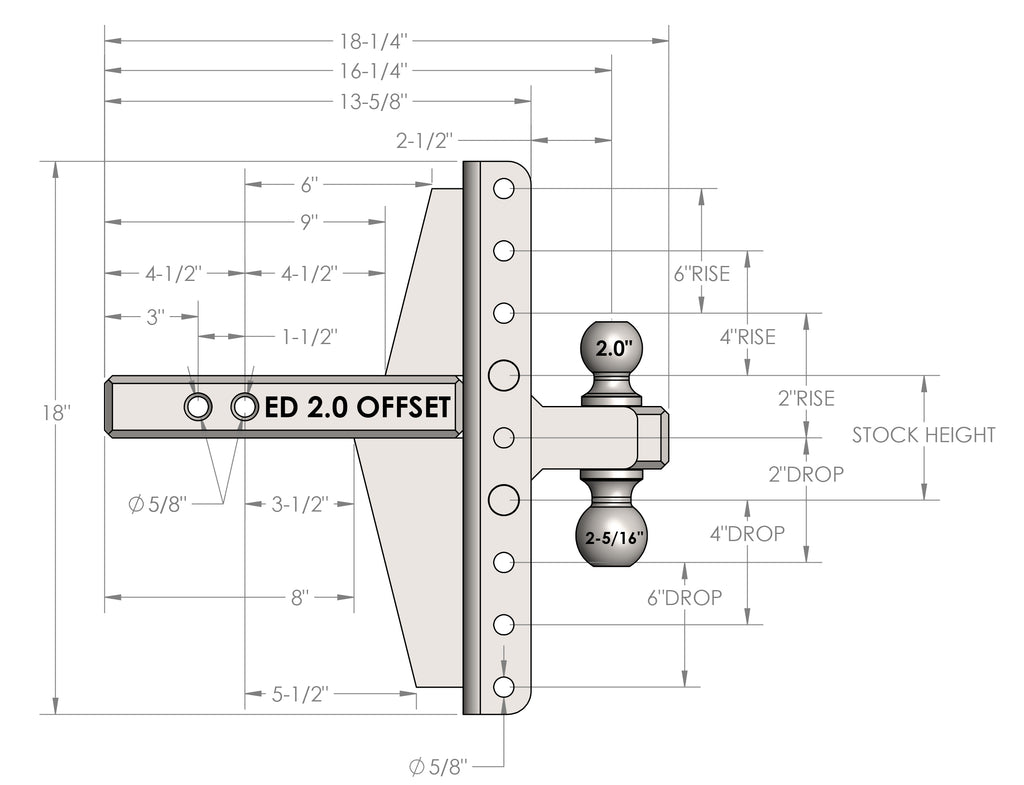

Product Specifications
2.0-Inch Extreme Duty 4-Inch & 6-Inch Offset Hitch- Production Specifications
2.0-Inch Extreme Duty 4-Inch & 6-Inch Offset Hitch- Production Specifications

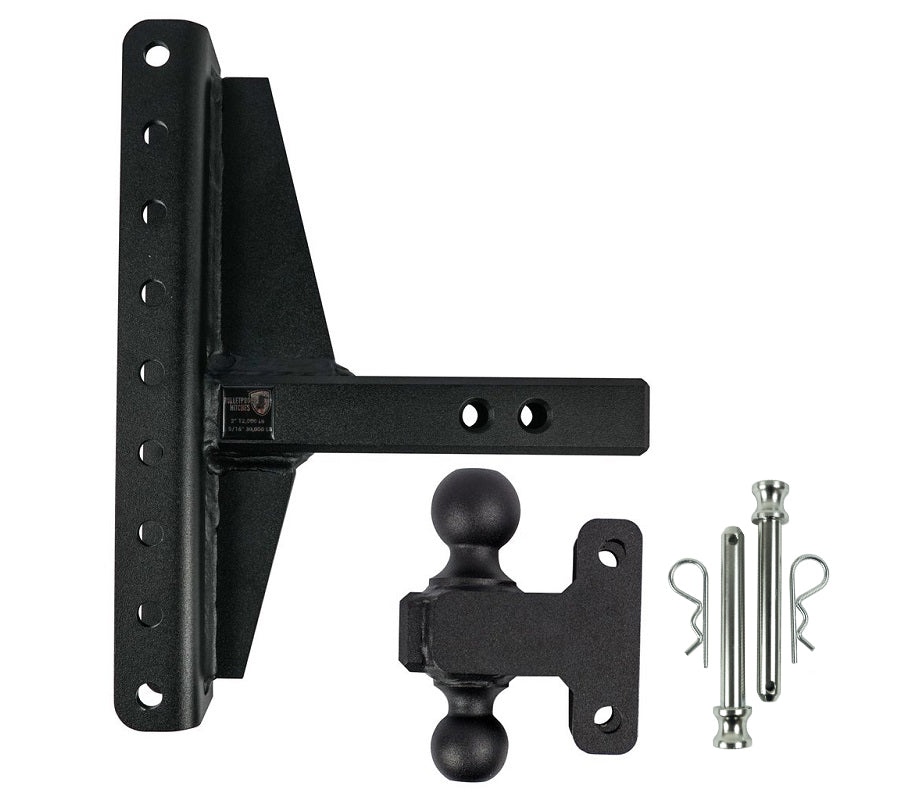

Parts Included
  • 2" Solid Steel Shank
  • 2 × 5/8" Corrosion Resistant Pins
  • 2 × R-Clips
  • 2" & 2-5/16" Ball Mount
2.0-Inch Extreme Duty 4-Inch & 6-Inch Offset Hitch- Parts Included
  • 2" Solid Steel Shank
  • 2 × 5/8" Corrosion Resistant Pins
  • 2 × R-Clips
  • 2" & 2-5/16" Ball Mount
2.0-Inch Extreme Duty 4-Inch & 6-Inch Offset Hitch- Parts Included
GUIDES & INFORMATION
Download Hitch Measuring Guide
Download Hitch Measuring Guide

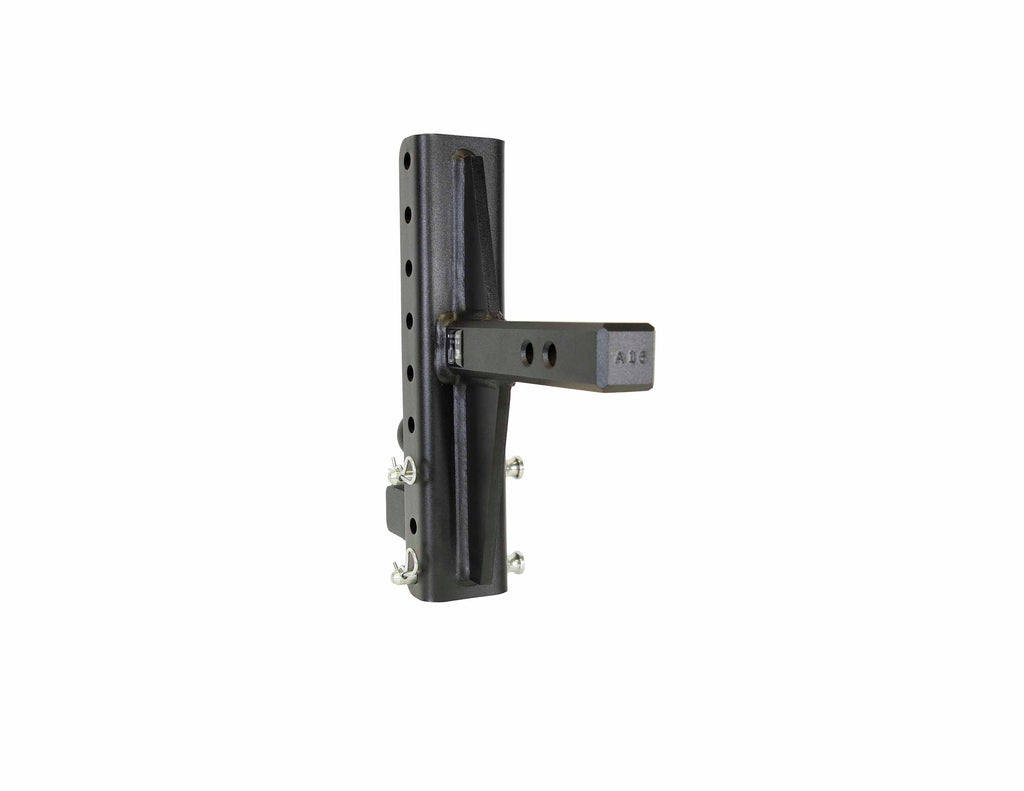

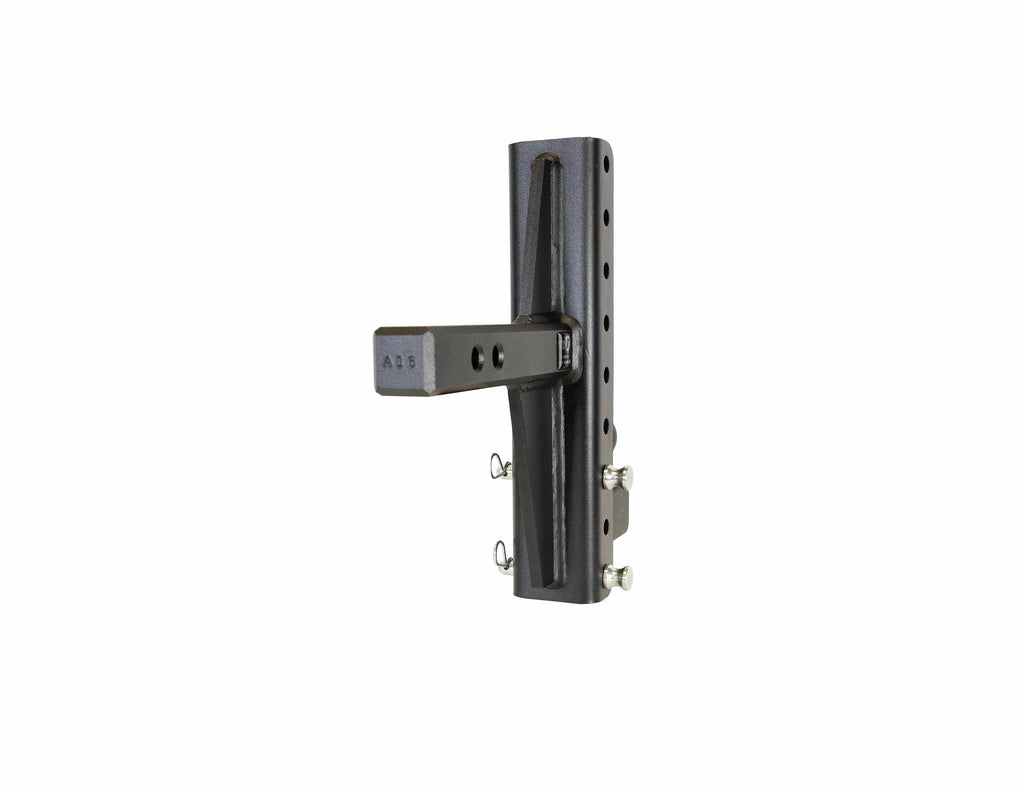

SOLID STEEL SHANK

The Heavy Duty and Extreme Duty hitch shanks are solid steel all the way through and has chamfered edges so that they can easily slide into & out of your hitch receiver. The solid steel shank also comes with two pin holes for more adjustment options. The textured powder-coated finish creates a durable surface to help protect your hitch.

2.0-Inch Extreme Duty 4-Inch & 6-Inch Offset Hitch- Shank Information

The Heavy Duty and Extreme Duty hitch shanks are solid steel all the way through and has chamfered edges so that they can easily slide into & out of your hitch receiver. The solid steel shank also comes with two pin holes for more adjustment options. The textured powder-coated finish creates a durable surface to help protect your hitch.

2.0-Inch Extreme Duty 4-Inch & 6-Inch Offset Hitch- Shank Information

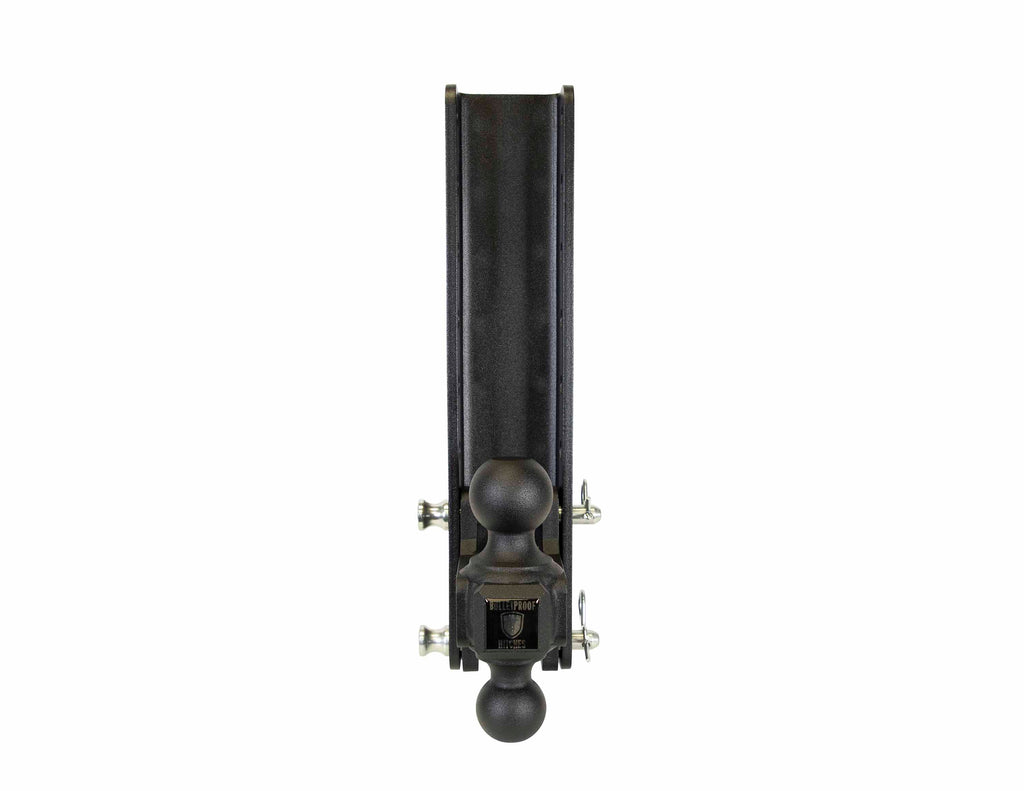

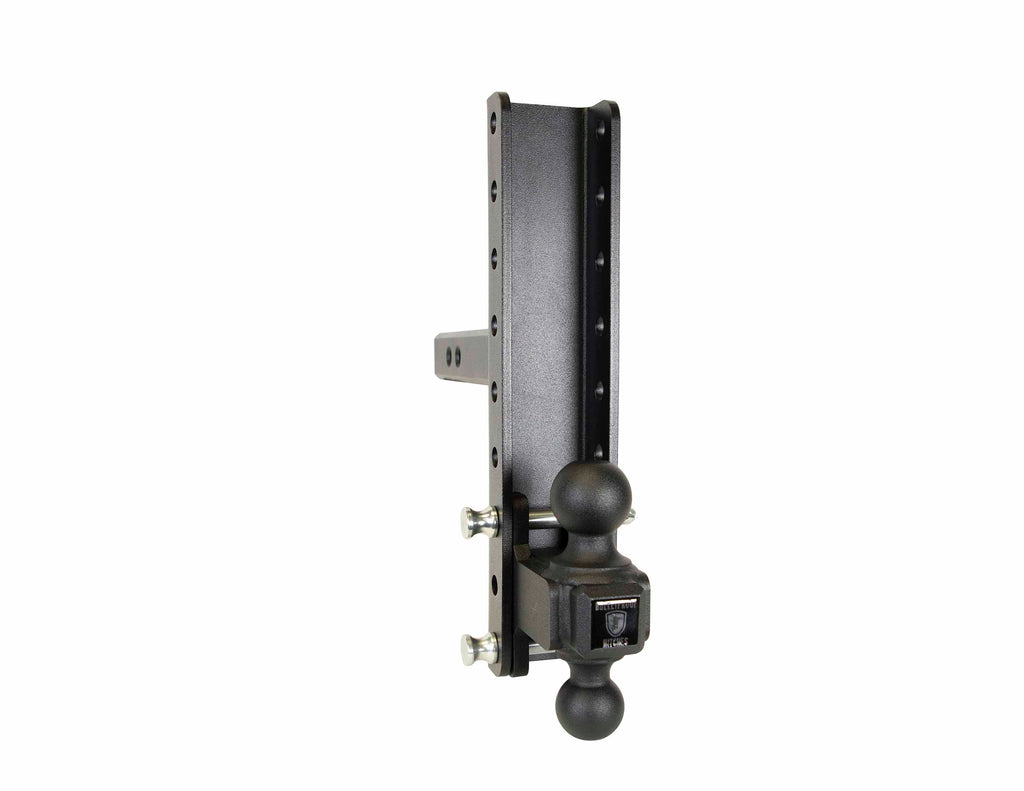

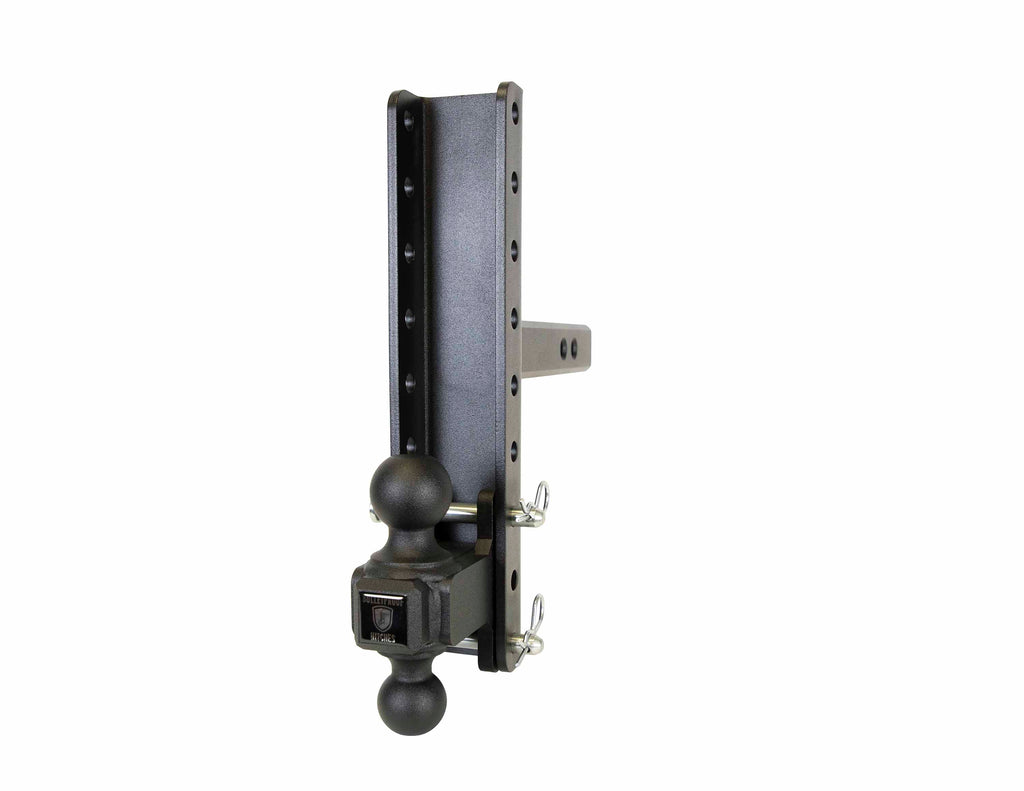

EXTREME DUTY DUAL BALL MOUNT

Each adjustable mount includes a 2-ball platform, which fits in the adjustable channel. The 2 hitch balls are welded together onto the solid steel platform for maximum strength and stability.

2.0" Extreme Duty 4" & 6" Offset Hitch- EXTREME DUTY DUAL BALL MOUNT

Note:  We can include any of the dual ball size combinations listed below with your hitch order.

Select the sizes needed for your dual ball from the options available below.

Available Dual Ball Combinations Include:

2" & 2-5/16" Dual Ball — No Additional Cost (Most Common Size)

Extreme Duty Sway Control Ball Mount — $74.95 Upgrade

2" & 2-5/16" Dual Ball AND 1-7/8" Single Ball Mount — $119.95 Upgrade

Extreme Dual Ball Weight Ratings

1-7/8" Ball: 8,000 lb Rating

2" Ball:  12,000 lb Rating

2-5/16" Ball:  30,000 lb Rating



Each adjustable mount includes a 2-ball platform, which fits in the adjustable channel. The 2 hitch balls are welded together onto the solid steel platform for maximum strength and stability.

2.0" Extreme Duty 4" & 6" Offset Hitch- EXTREME DUTY DUAL BALL MOUNT

Note:  We can include any of the dual ball size combinations listed below with your hitch order.

Select the sizes needed for your dual ball from the options available below.

Available Dual Ball Combinations Include:

2" & 2-5/16" Dual Ball — No Additional Cost (Most Common Size)

Extreme Duty Sway Control Ball Mount — $74.95 Upgrade

2" & 2-5/16" Dual Ball AND 1-7/8" Single Ball Mount — $119.95 Upgrade

Extreme Dual Ball Weight Ratings

1-7/8" Ball: 8,000 lb Rating

2" Ball:  12,000 lb Rating

2-5/16" Ball:  30,000 lb Rating



SIGNATURE BLACK TEXTURED POWDER COAT

All BulletProof Hitches® feature a durable corrosion-resistant powder coat. This process starts with an aggressive sandblast to remove all impurities and create a clean surface for the powder coat. After the sandblast process, the hitch moves through a 5-stage pretreatment wash to remove any oil or residue. The metal itself is then sealed to eliminate the possibility of corrosion. The final step is an application of our signature black textured powder coat, which is applied by a Fanuc robot to ensure consistent thickness across the hitch.

All BulletProof Hitches® feature a durable corrosion-resistant powder coat.

All BulletProof Hitches® feature a durable corrosion-resistant powder coat. This process starts with an aggressive sandblast to remove all impurities and create a clean surface for the powder coat. After the sandblast process, the hitch moves through a 5-stage pretreatment wash to remove any oil or residue. The metal itself is then sealed to eliminate the possibility of corrosion. The final step is an application of our signature black textured powder coat, which is applied by a Fanuc robot to ensure consistent thickness across the hitch.

All BulletProof Hitches® feature a durable corrosion-resistant powder coat.
CNC Machining

The components of the BulletProof Hitch® are machined on our state-of-the-art Haas CNC machines. These CNC machines use Renishaw probes, allowing us to manufacture all of our parts to an extremely tight tolerance. This primarily ensures that each hitch and ball combination fit together without slop or excess movement when attached to your vehicle.

2.0" Extreme Duty 4" & 6" Offset Hitch- Shank Information

The components of the BulletProof Hitch® are machined on our state-of-the-art Haas CNC machines. These CNC machines use Renishaw probes, allowing us to manufacture all of our parts to an extremely tight tolerance. This primarily ensures that each hitch and ball combination fit together without slop or excess movement when attached to your vehicle.

2.0" Extreme Duty 4" & 6" Offset Hitch- Shank Information

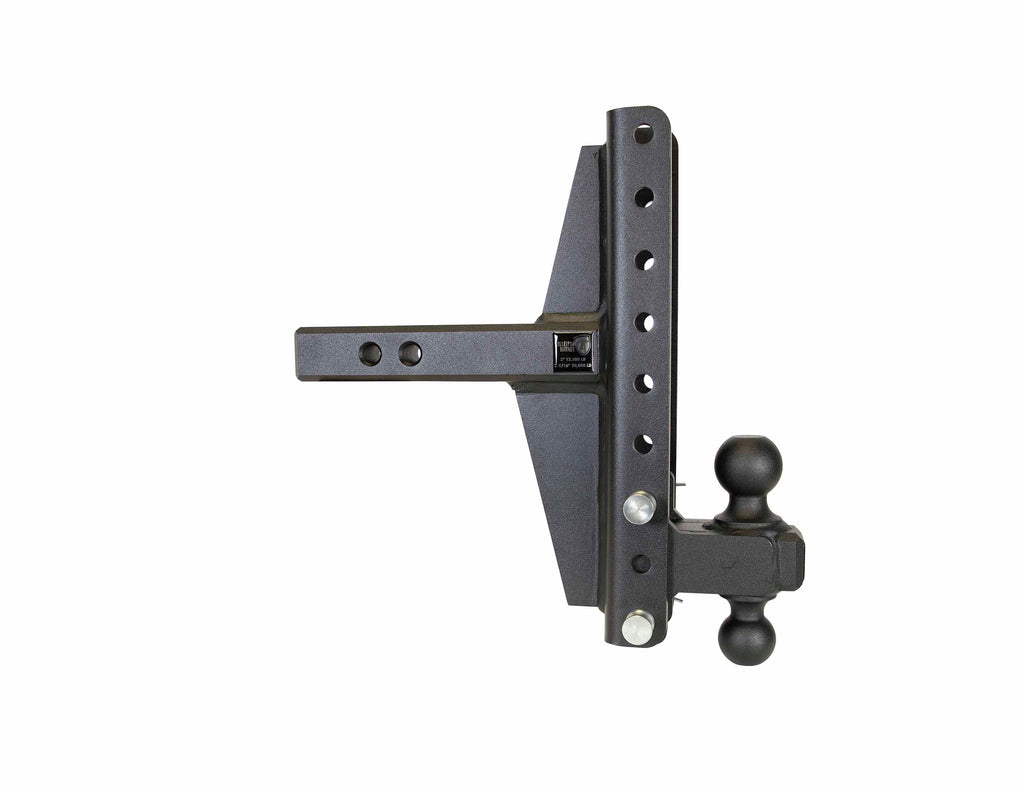

Using our hitches in the Rise Position

All of our hitches can be used in the drop or rise position and maintain the same weight capacity in either position.

This 2.0" Extreme Duty 4" & 6" Offset Hitch has a max towing capacity of:
36,000 LBS and a tongue weight capacity of 6,000 LBS in both the drop & rise positions.

All of our hitches can be used in the drop or rise position and maintain the same weight capacity in either position.

This 2.0" Extreme Duty 4" & 6" Offset Hitch has a max towing capacity of:
36,000 LBS and a tongue weight capacity of 6,000 LBS in both the drop & rise positions.

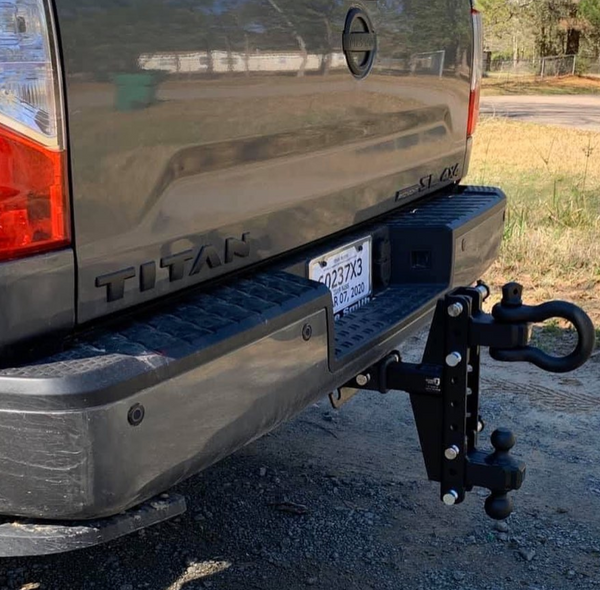

The 2.0" Extreme Duty 4" & 6" Offset Hitch - In Use
Select Your Ball Type

PRICE: $439.00
( / )
